AIMB-279 User Manual 28

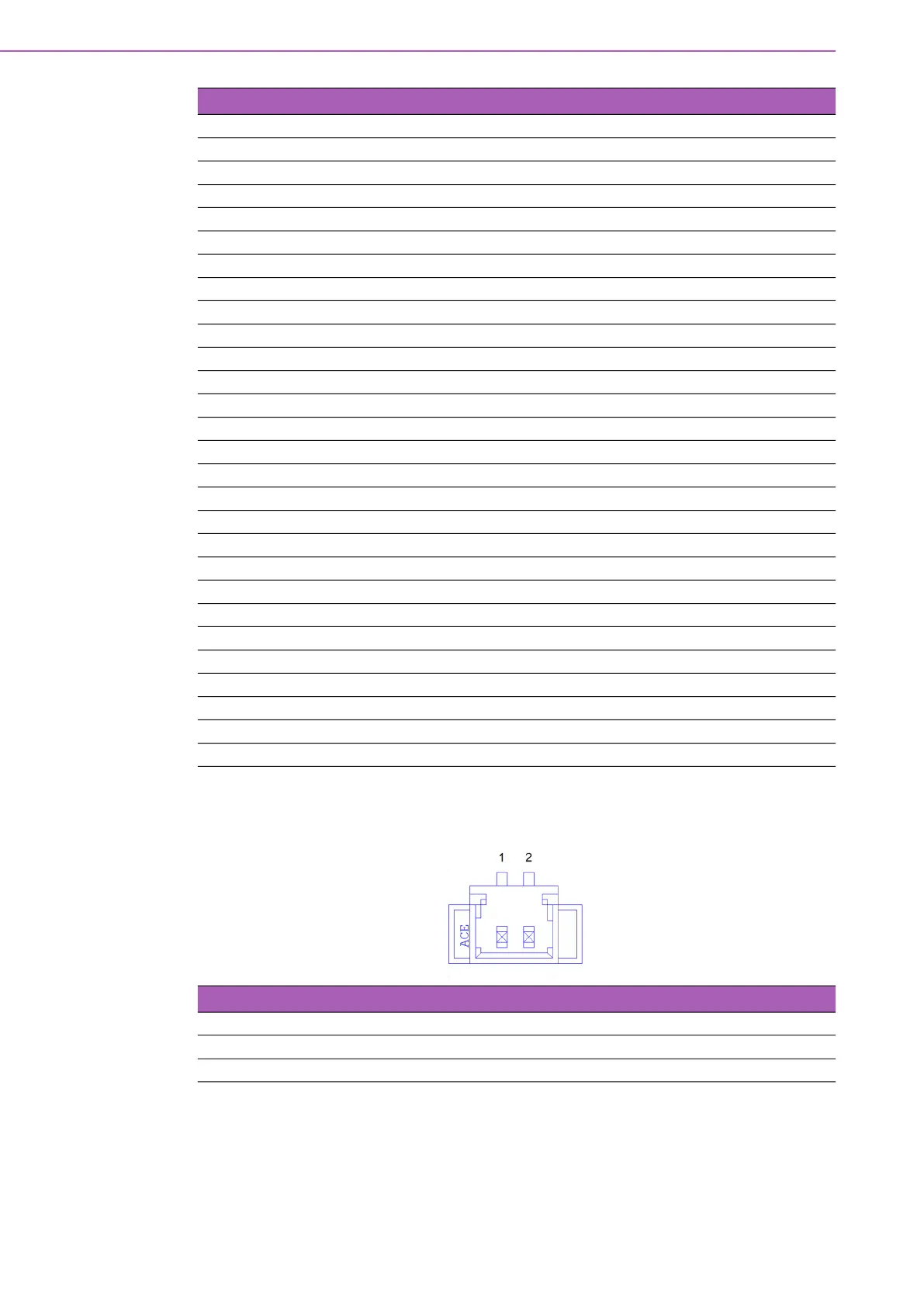

2.35 CMOS Battery Connector (BAT1)
21 CNV_WR_CLK- 22 CNV_BRI_RSP
23 CNV_WR_CLK+ 24 Connector key
25 Connector key 26 Connector key
27 Connector key 28 Connector key
29 Connector key 30 Connector key
31 Connector key 32 CNV_RGI_DT_R
33 GND 34 CNV_RGI_RSP
35 PETp0 36 CNV_BRI_DT_R
37 PETn0 38 CL_RST#
39 GND 40 CL_DAT
41 PERp0 42 CL_CLK
43 PERn0 44 CNV_GNSS_PA_BLANKING
45 GND 46 CNV_MFUART2_TXD
47 REFCLKp0 48 CNV_MFUART2_RXD
49 REFCLKn0 50 SUSCLK
51 GND 52 WLAN_RST#
53 CLKREQ0# 54 BT_RF_KILL#
55 PEWAKE0# 56 WIFI_RF_KILL#
57 GND 58 NC
59 CNV_WT_D1- 60 NC
61 CNV_WT_D1+ 62 NC
63 GND 64 NC
65 CNV_WT_D0- 66 NC
67 CNV_WT_D0+ 68 NC
69 GND 70 NC
71 CNV_WT_CLK- 72 +3.3V
73 CNV_WT_CLK+ 74 +3.3V
75 GND
Table 2.34: M.2 E-Key Connector (M2E1)
Table 2.35: CMOS Battery Connector (BAT1)
Pin Signal
1 +VBAT
2 GND
