29 AIMB-279 User Manual
Chapter 2 Connecting Peripherals

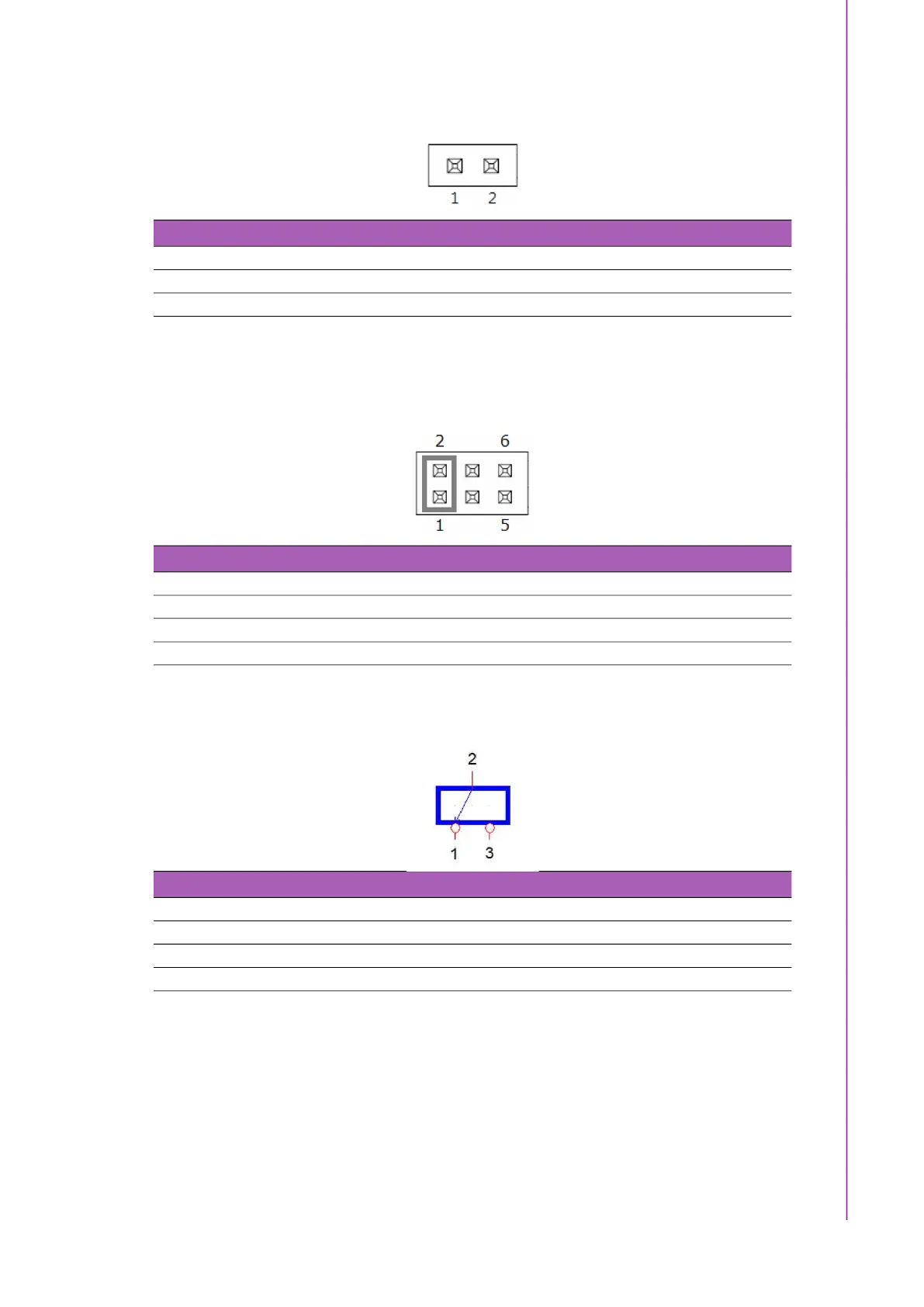

2.36 Case Open connector (JCASE1)
2.37 COM1 RI# Selection Pin Header
(JSETCOM1_V1)
2.38 PCI Express x16 Bifurcation (SW_PEGSEL1)
Table 2.36: Case Open Connector (JCASE1)
Pin Signal
1 Case Open
2 GND
Table 2.37: COM1 RI# Selection Pin Header (JSETCOM1_V1)
Pin Signal Pin Signal
1 RI# [1] 2 Advantech define
3 Advantech define 4 +5V
5 +12V 6 Advantech define
Table 2.38: PCI Express x16 Bifurcation (SW_PEGSEL1)
Pin Signal
1 VCC_CFG
2 CFG
3 GND
