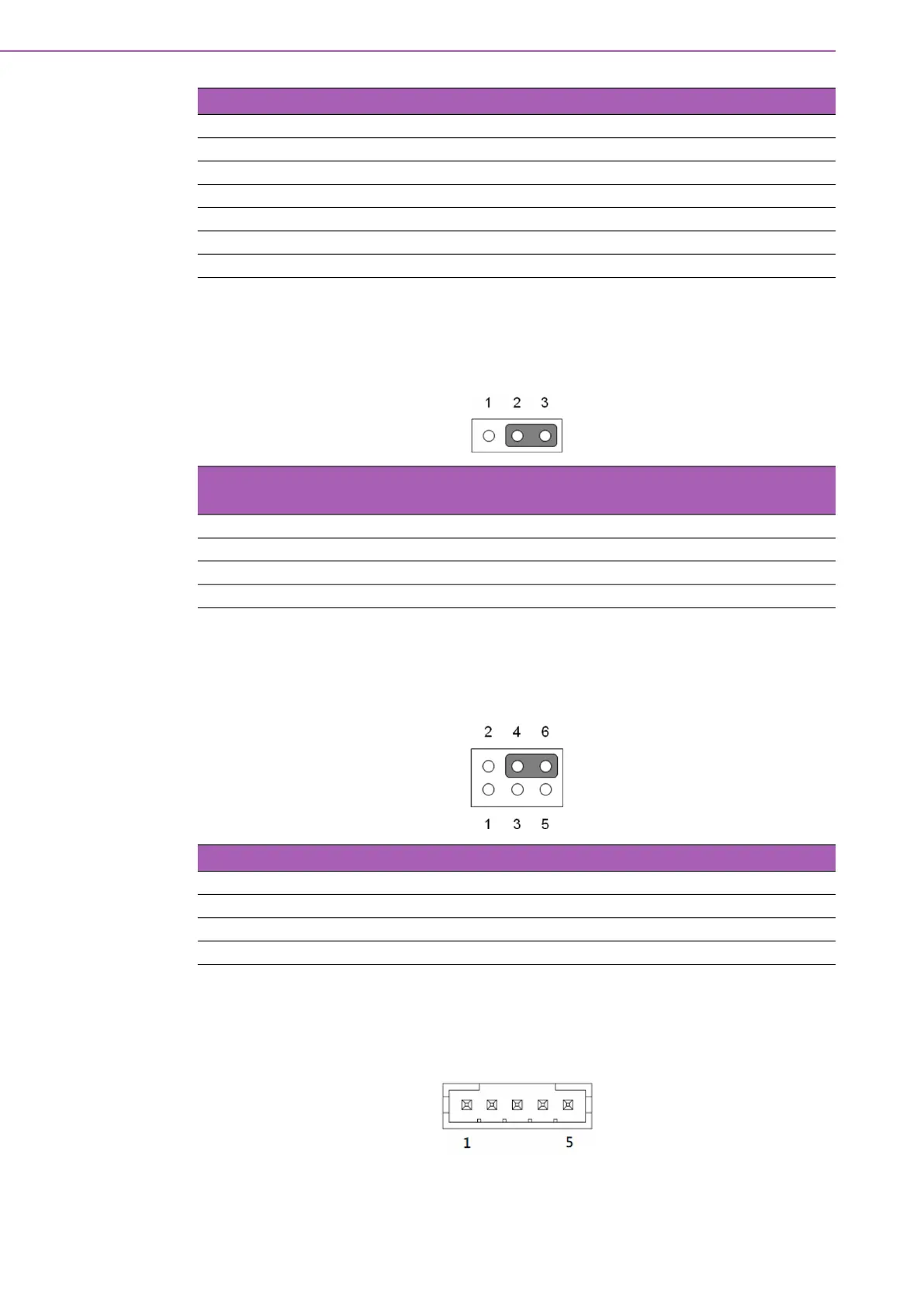

2.15 LVDS VESA, JEIDA Format Selection Pin Header
(JLVDS_VCON1)
2.16 EDP Panel / LVDS Panel Voltage Selection
(JEDP1_LVDS1)
2.17 EDP / LVDS Backlight Inverter Power Connector
(INV1)
27 EDP_TX3+ 28 N.C
29 GND 30 GND
31 EDP_AUX+ 32 EDP_AUX-
33 GND 34 EDP_HPD
35 N.C 36 N.C
37 N.C 38 N.C
39 N.C 40 GND
Table 2.14: EDP Connector (EDP1)
Table 2.15: LVDS VESA, JEIDA Format Selection Pin Header
(JLVDS_VCON1)
Pin Signal
1 +3.3V
2 Advantech define
3 GND
Table 2.16: EDP Panel / LVDS Panel Voltage Selection (JEDP1_LVDS1)
Pin Signal Pin Signal
1 NC 2 +5V
3 +12V 4 VDD
5 NC 6 +3.3V
