2.26 Power LED Pin Header (JFP2)
2.27 Serial ATA Interface Connector (SATA2)
2.28 Serial ATA Interface Connector (SATA1)

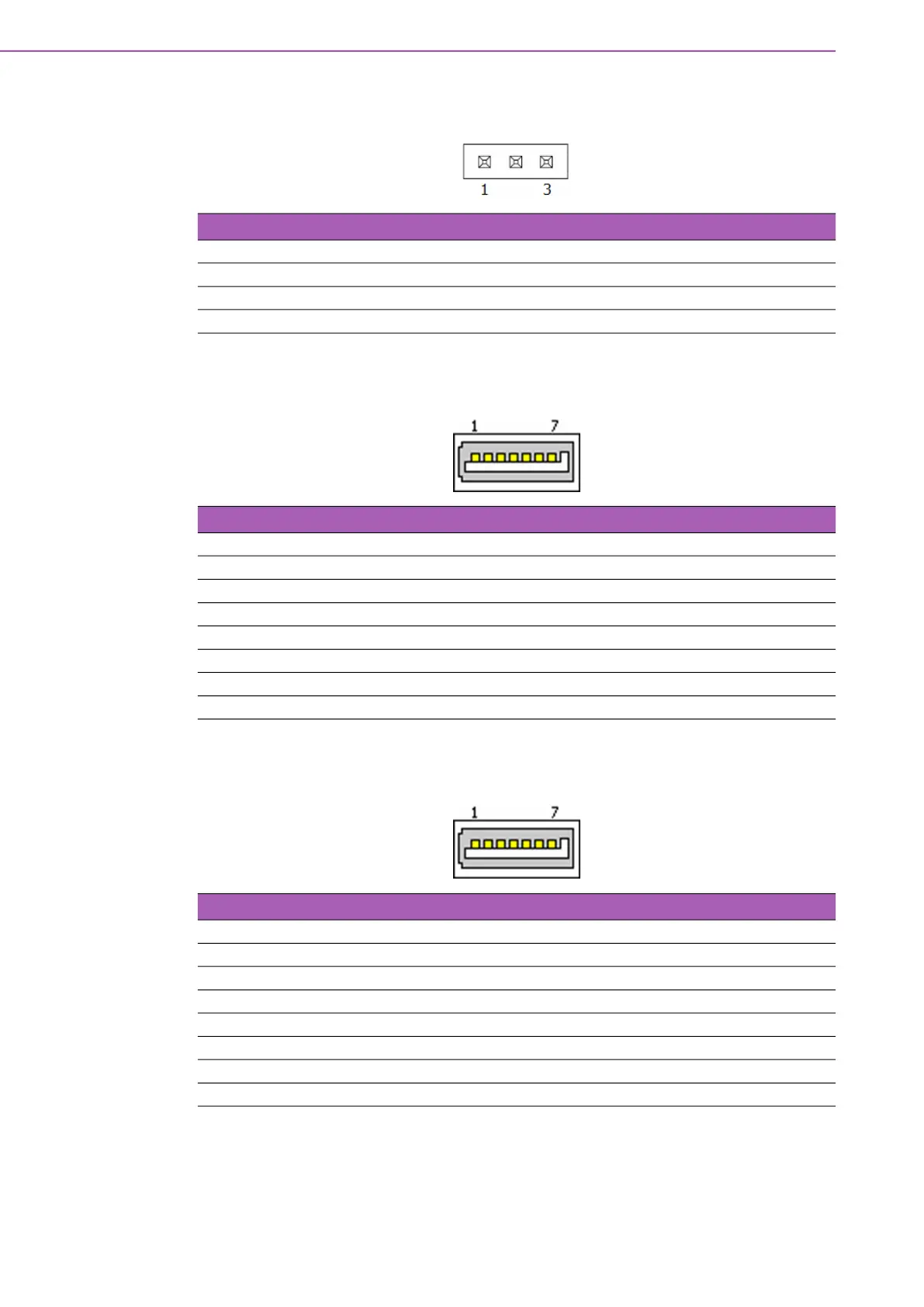

Table 2.26: Power LED Pin Header (JFP2)
Pin Signal
1 Power LED+
2 NC
3 Power LED-
Table 2.27: Serial ATA Interface Connector (SATA2)
Pin Signal
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 2.28: Serial ATA Interface Connector (SATA1)
Pin Signal
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
