AIMB-279 User Manual 14

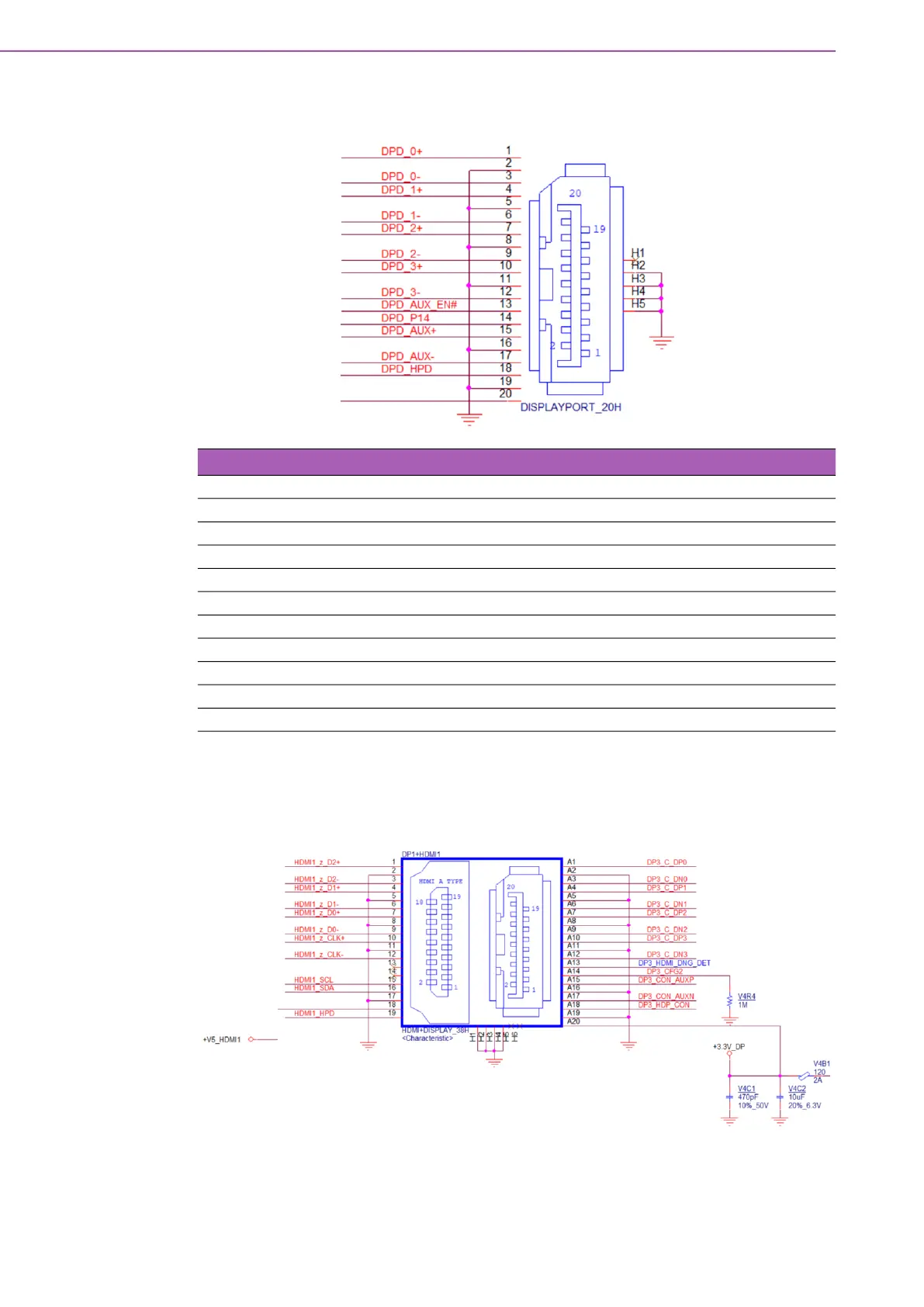

2.6 DisplayPort Connector (DP2)
2.7 DisplayPort Dual Port Stack-Up Connector
(DP1+HDMI1)
Table 2.5: DisplayPort Connector (DP2)
Pin Signal Pin Signal
1 DPD_0+ 2 GND
3 DPD_0- 4 DPD_1+
5 GND 6 DPD_1-
7 DPD_2+ 8 GND
9 DPD_2- 10 DPD_3+
11 GND 12 DPD_3-
13 DPD_AUX_EN# 14 DPD_P14
15 DPD_AUX+ 16 GND
17 DPD_AUX- 18 DPD_HPD
19 GND 20 +V3.3_DPD
