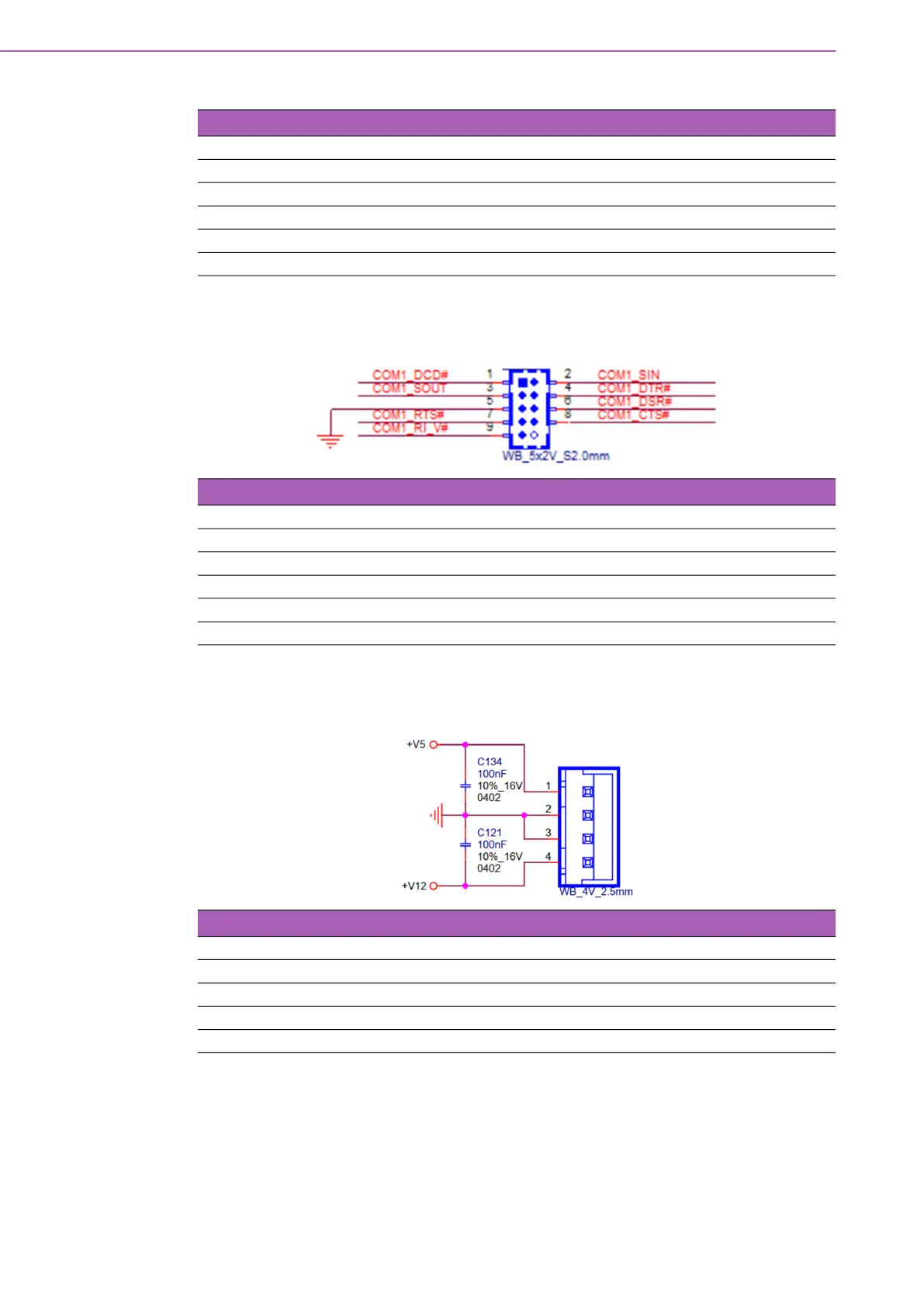

AIMB-279 User Manual 22

2.21 COM1 Connector (COM1)

2.22 SATA Power (SATA_PWR2)

Table 2.20: ESPI Port 80 Connector (ESPI1)

Pin Signal Pin Signal

1 ESPI_DEG_IO_1 2 ESPI_DEG_CLK

3 ESPI_DEG_IO_0 4 ESPI_RST#

5 +V3.3 6 ESPI_CS0#

7 GND 8 ESPI_DEG_IO_3

9 +V3.3SB 10 ESPI_DEG_IO_2

Table 2.21: COM1 Connector (COM1)

Pin Signal Pin Signal

1 COM1_DCD# 2 COM1_SIN

3 COM1_SOUT 4 COM1_DTR#

5 GND 6 COM1_DSR#

7 COM1_RTS# 8 COM1_CTS#

9 COM1_RI_V# 10 NC

Table 2.22: SATA Power (SATA_PWR2)

Pin Signal

1 +V5

2 GND

3 GND

4 +V12
