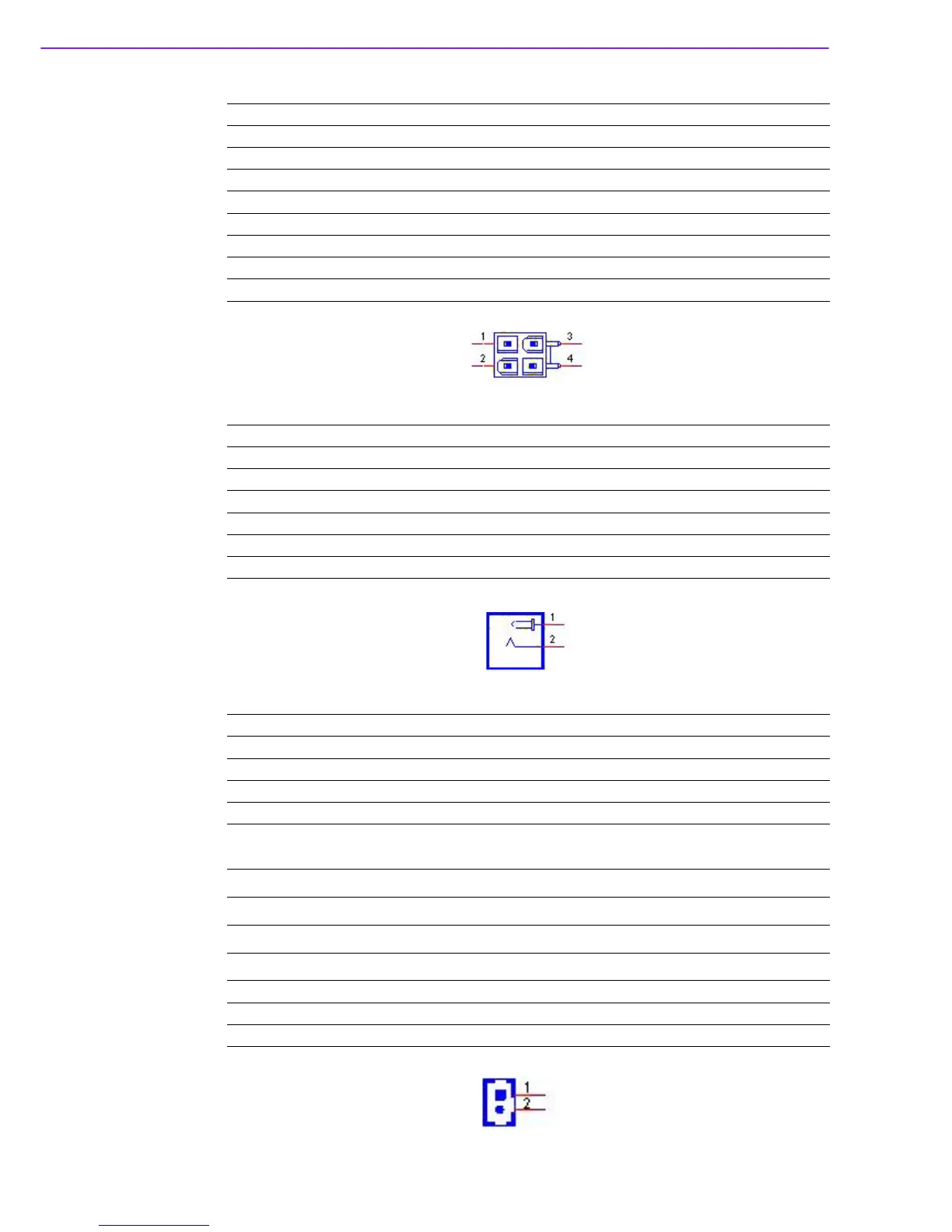

MIO-5250 User Manual 36
CN1 12V Power Input
Part Number 1655003865
Footprint WF_2x2P_165_BOX_RA_D_740SP
Description
Pin Pin Name
1GND
2GND
3+12V
4+12V
CN2 DC JACK
Part Number 1652005624
Footprint PJ_2P_2DC-G213B200
Description DC POWER JACK 2.5mm 90D(M) DIP 2DC-G213B200
Pin Pin Name
1+VIN
2GND
CN3 SODIMMDDR3RVS_204
Part Number 1651001648
Footprint DDR3_204P_2-2013311-1
Description DDR3 SODIMM H=9.2mm 204P SMD 2-2013311-1
Pin Pin Name
CN5 Power Switch
Part Number 1655302020
Footprint WF_2P_79_BOX_R1_D
Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P
Pin Pin Name
1 PSIN
2GND
