13 Chapter 2

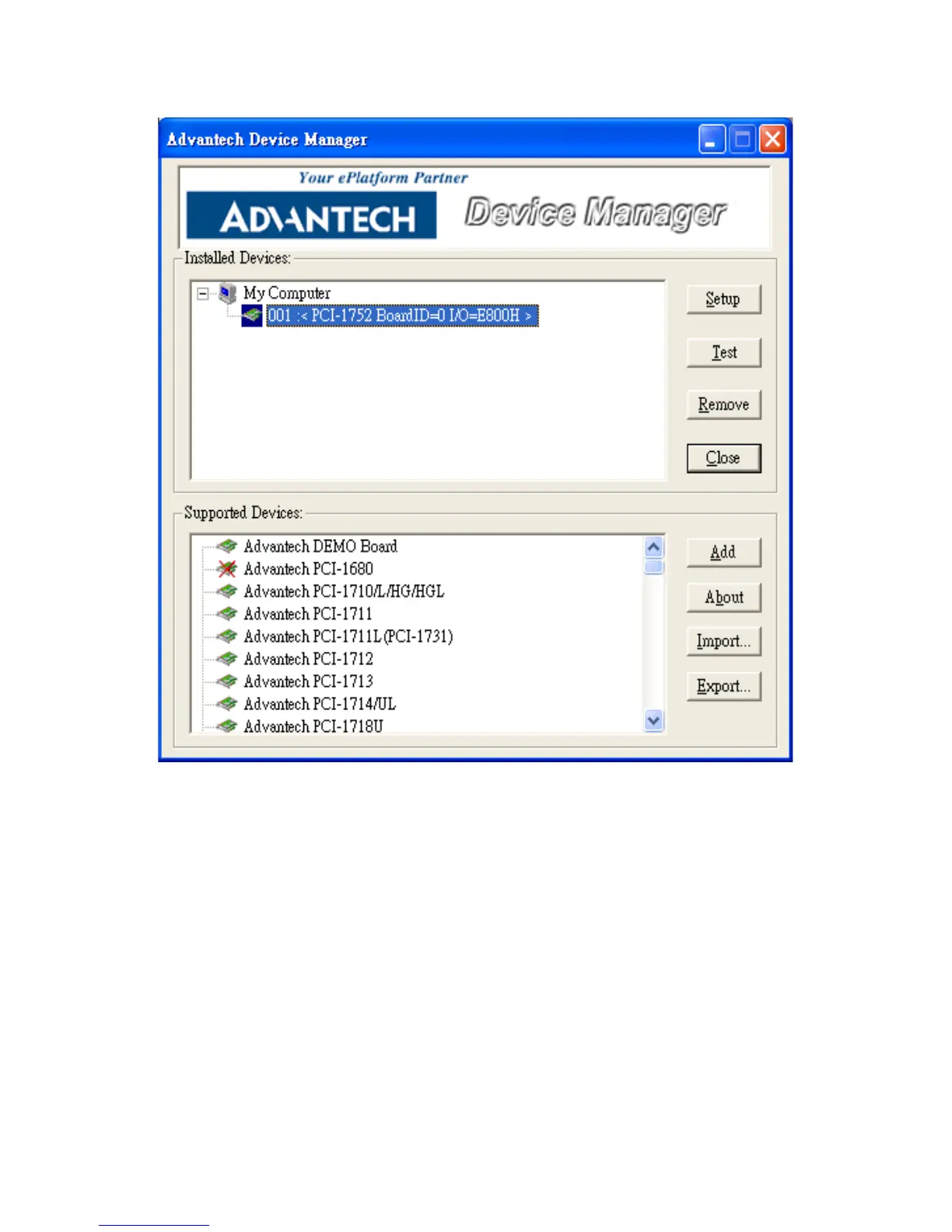

Figure 2.4: Advantech Device Manager
On the Device Test dialog box, users are free to test various functions of
PCI-1752U/PCI-1752USO on the Digital output tab.
Testing Digital Output Function
Click the Digital Output tab to bring up the Digital Output test panel such
as seen on the next page. By pressing the buttons on each tab, users can
easily set each digital output channel as high or low for the corresponding
port.
