Advantech PCI-1752U - Isolated Digital Output Connections

19 Chapter 3

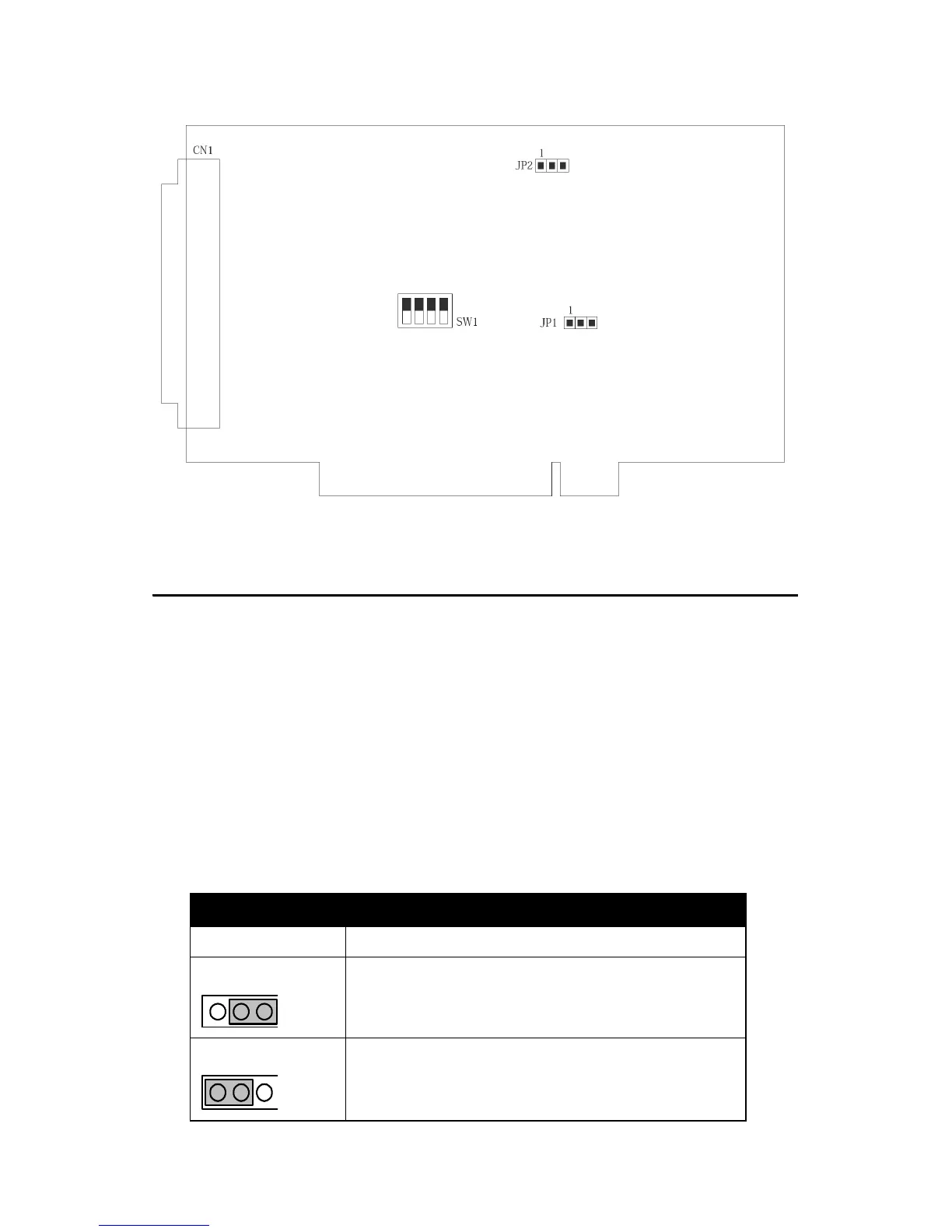

Figure 3.2: Location of Jumpers and DIP switch
3.3 Isolated Digital Output Connections
Power On Configuration
Default configuration after power on, and hardware reset is to set all the
isolated output channels to open status
( the current of the load can’t be sink) so that users need not worry about
damaging external devices during system startup or reset.
When the system is hot reset, then the status of isolated digital output
channels are selected by jumper JP1. Table 3-2 shows the configuration
of jumper JP1.
Table 3.2: Power on configuration after hot reset
PCI-1752 JP1 Power on configuration after hot reset
Keep last status after hot reset
Load default configuration (Default setting)
1
1
