3.2.3 Jumper Settings to Set Ports as Software-configurable or
Output ports

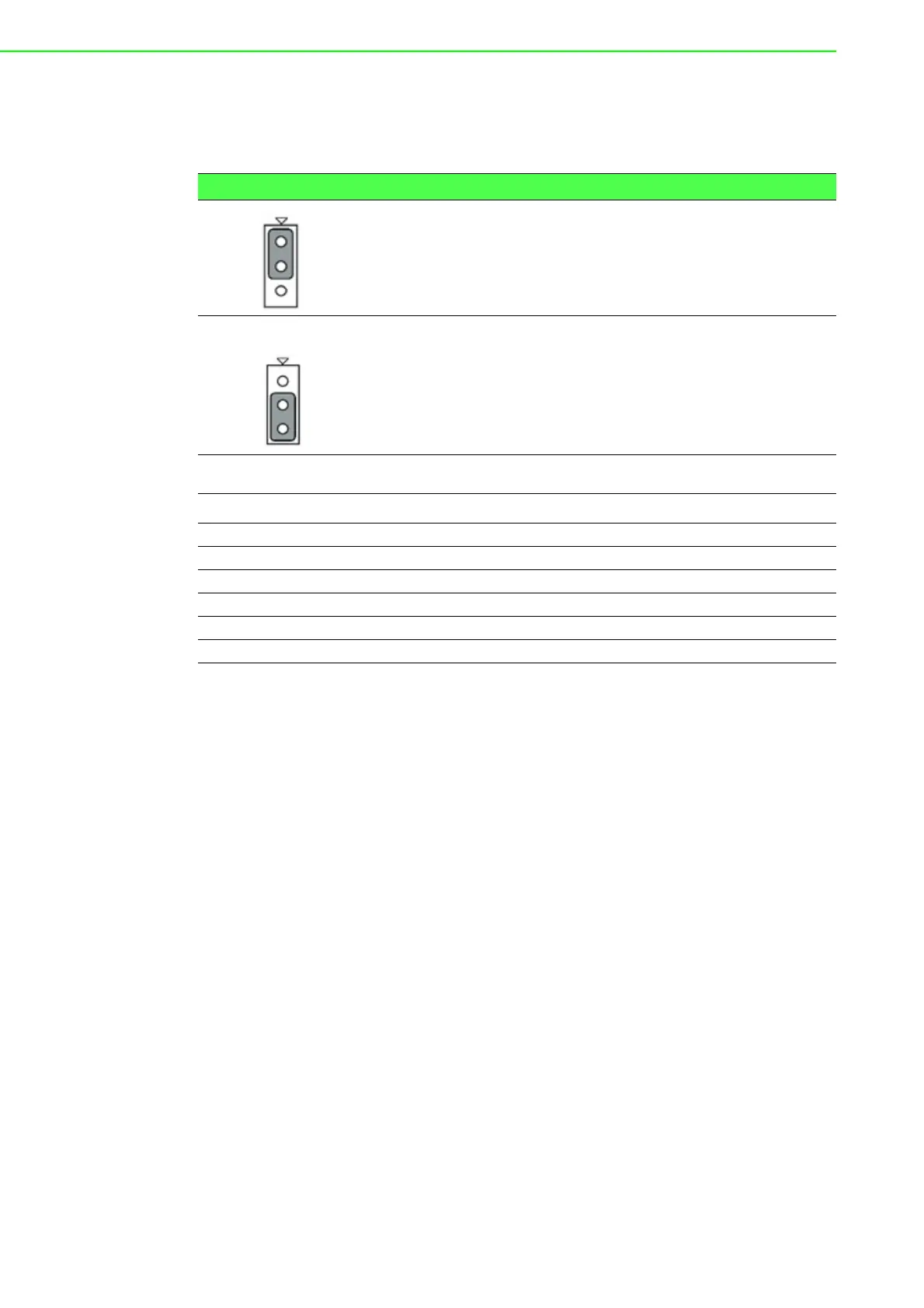

Table 3.3: Function Description
Set DIO channel as software-configurable input or output (default)
Set DIO channel as output
Jumper number Relative channels
JP1600 DIO 0~3
JP1601 DIO 4~7
JP1700 DIO 8~11
JP1701 DIO 12~15
JP1800 DIO 16~19
JP1801 DIO 20~23
