17 PCIE-1816_1816H User Manual
Chapter 3 Signal Connections
3.3 Signal Connections
Pin Assignments
The I/O connector on the PCIE-1816/1816H is a 68-pin connector that enable you to
connect to accessories with the PCL-10168-1 or PCL-10168H shielded cable.
Figure 3.2 shows the pin assignments for the 68-pin I/O connector on the PCIE-1816/
1816H, and Table 3.3 shows its I/O connector signal description.

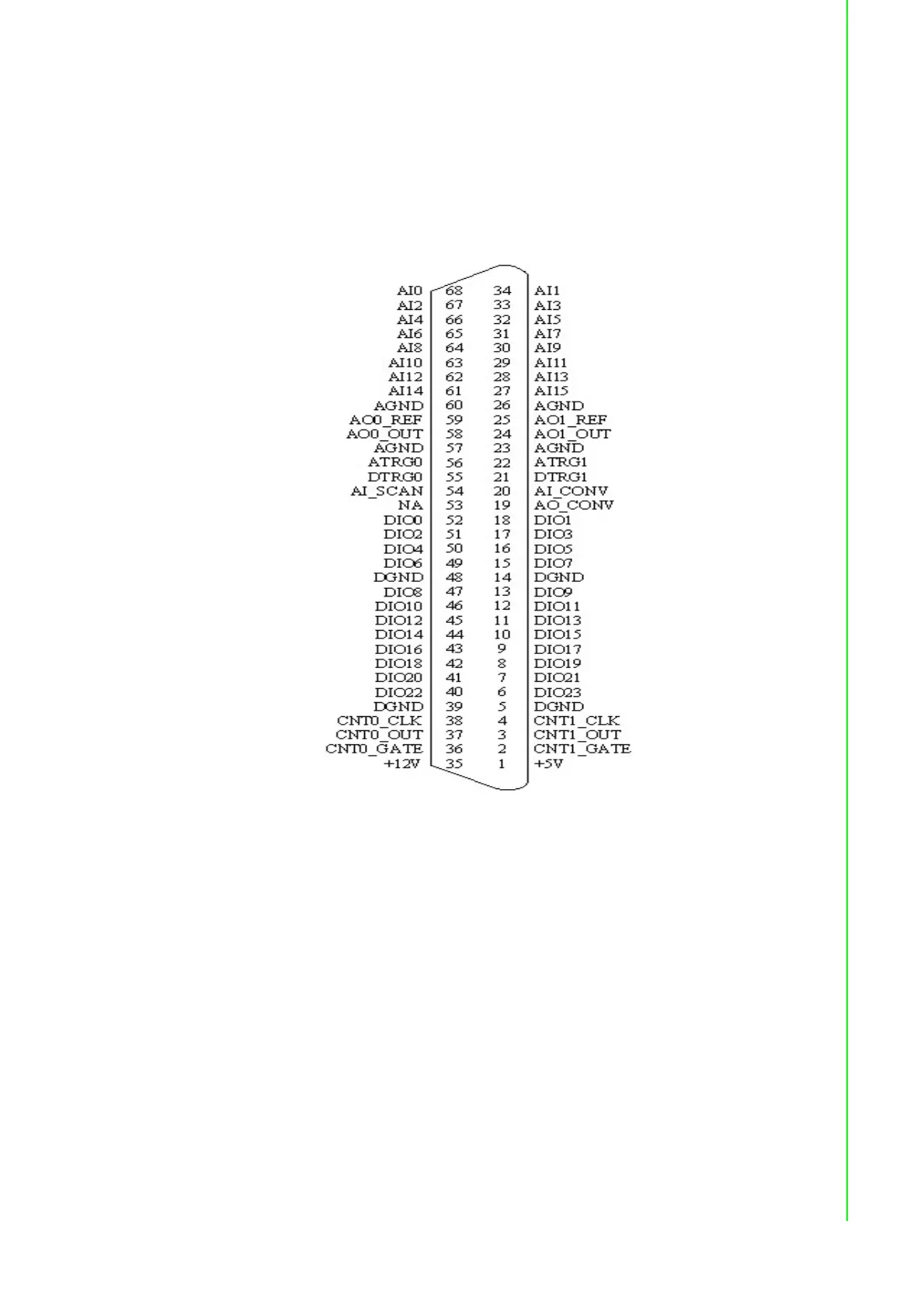

Figure 3.2 68-pin I/O Connector Pin Assignments
