PCIE-1816_1816H User Manual 28

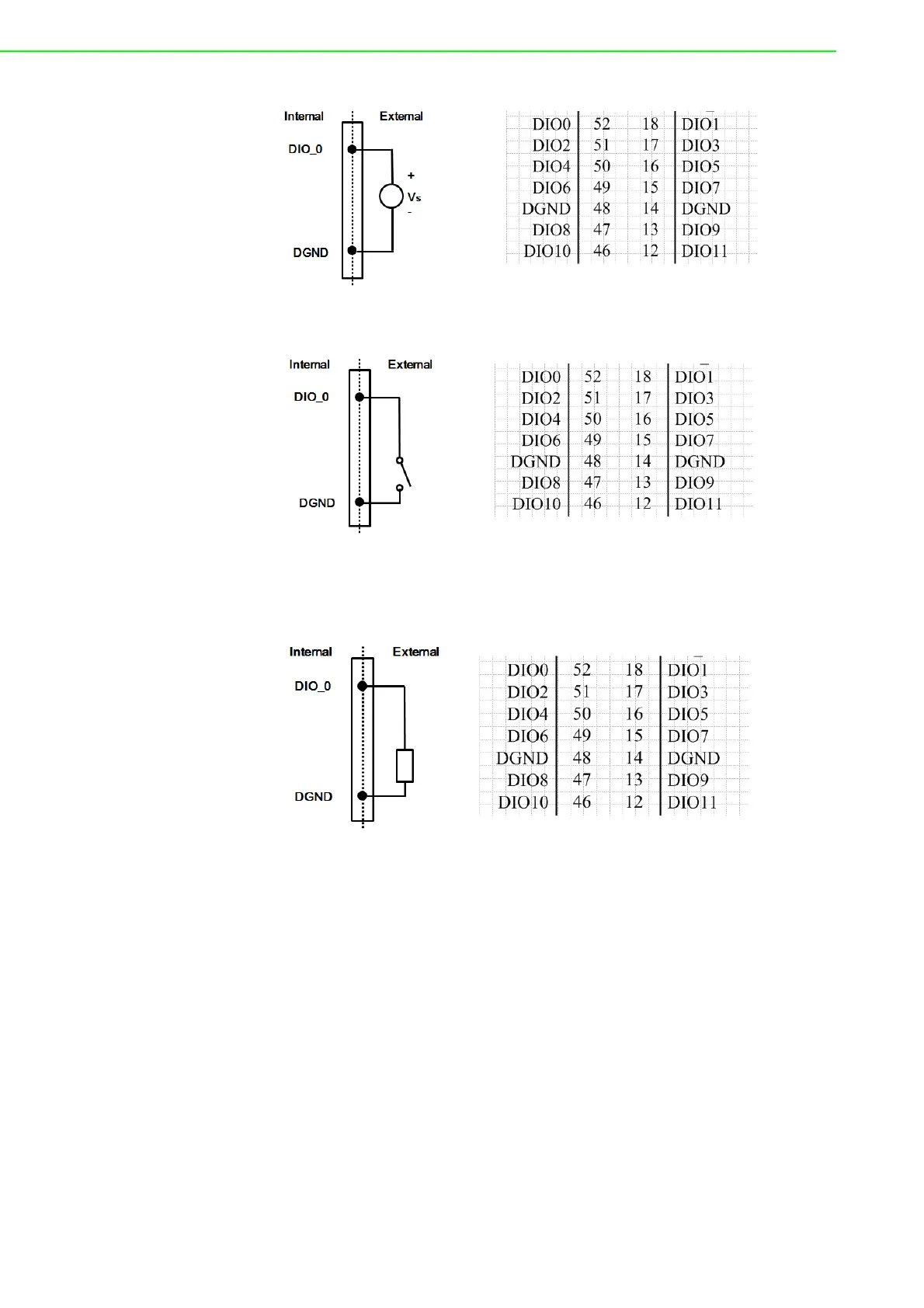

Figure 3.14 Wet signal connection of digital input
Figure 3.15 Dry signal connection of digital input
Digital Output Connections
PCIE-1816/ 1816H also has TTL digital output
Figure 3.16 Digital Output Channel Connections
