PCIE-1816_1816H User Manual 42

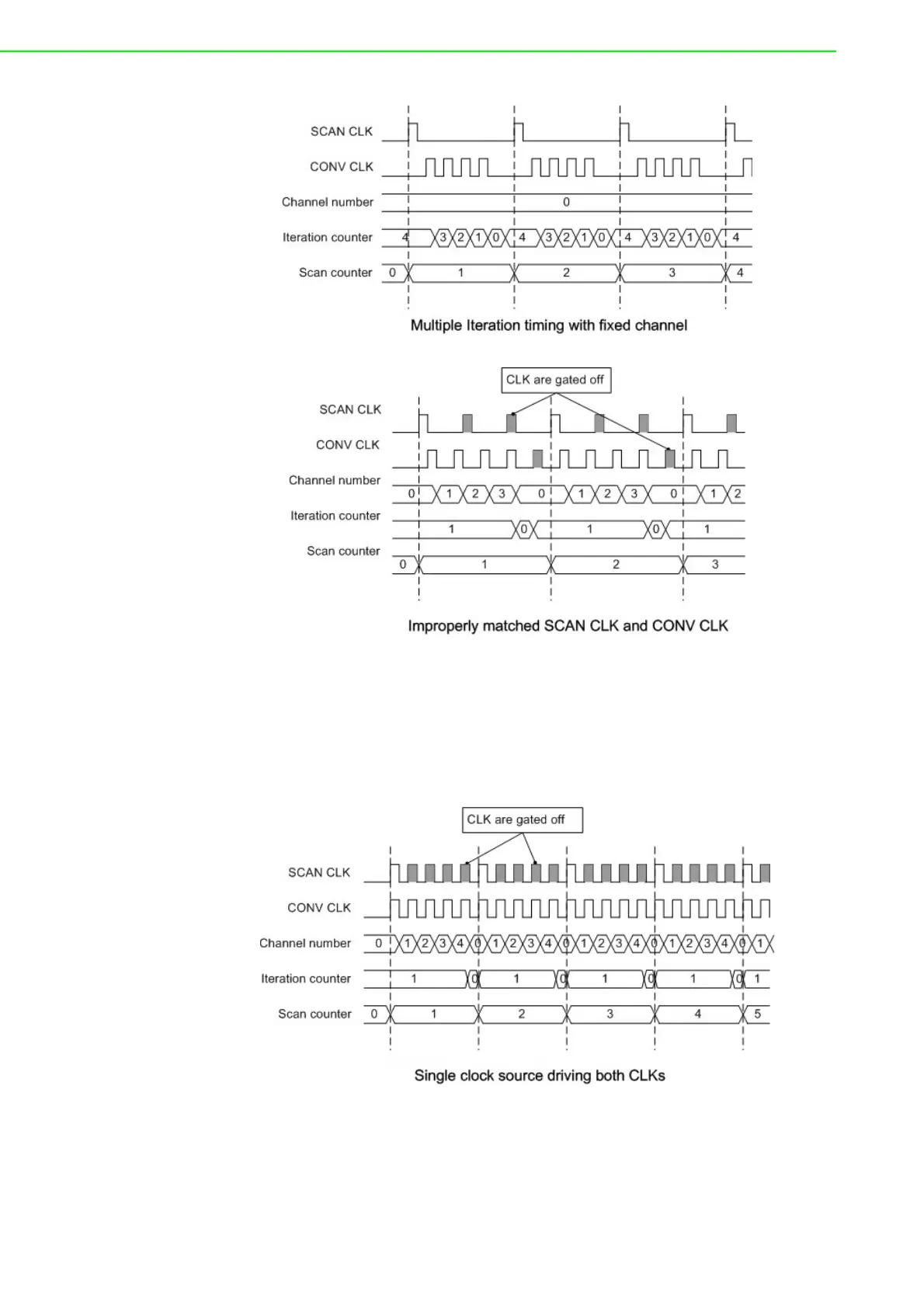

Single Clock Source Driving
Single clock source driving is a specific function well-suited for consecutive data
acquisition while there is only one clock signal available. CONV CLKs will be inter-
nally routed as SCAN CLKs. And the external SCAN CLKs input will not be accepted.
Figure describes how it works.
