2. Align a SO-DIMM on the socket such that the notch on the SO-DIMM matches
the break on the socket.
3. Firmly insert the SO-DIMM into the socket until the retaining clips snap back in
place and the SO-DIMM is properly seated.
Important!  A DDR3 SO-DIMM is keyed with a notch so that it fits in only one
direction. DO NOT force a SO-DIMM into a socket to avoid damag-
ing the SO-DIMM.
 The DDR3 SO-DIMM sockets do not support DDR SO-DIMMs. DO
NOT install DDR2 SO-DIMMs to the DDR3 SO-DIMM socket.

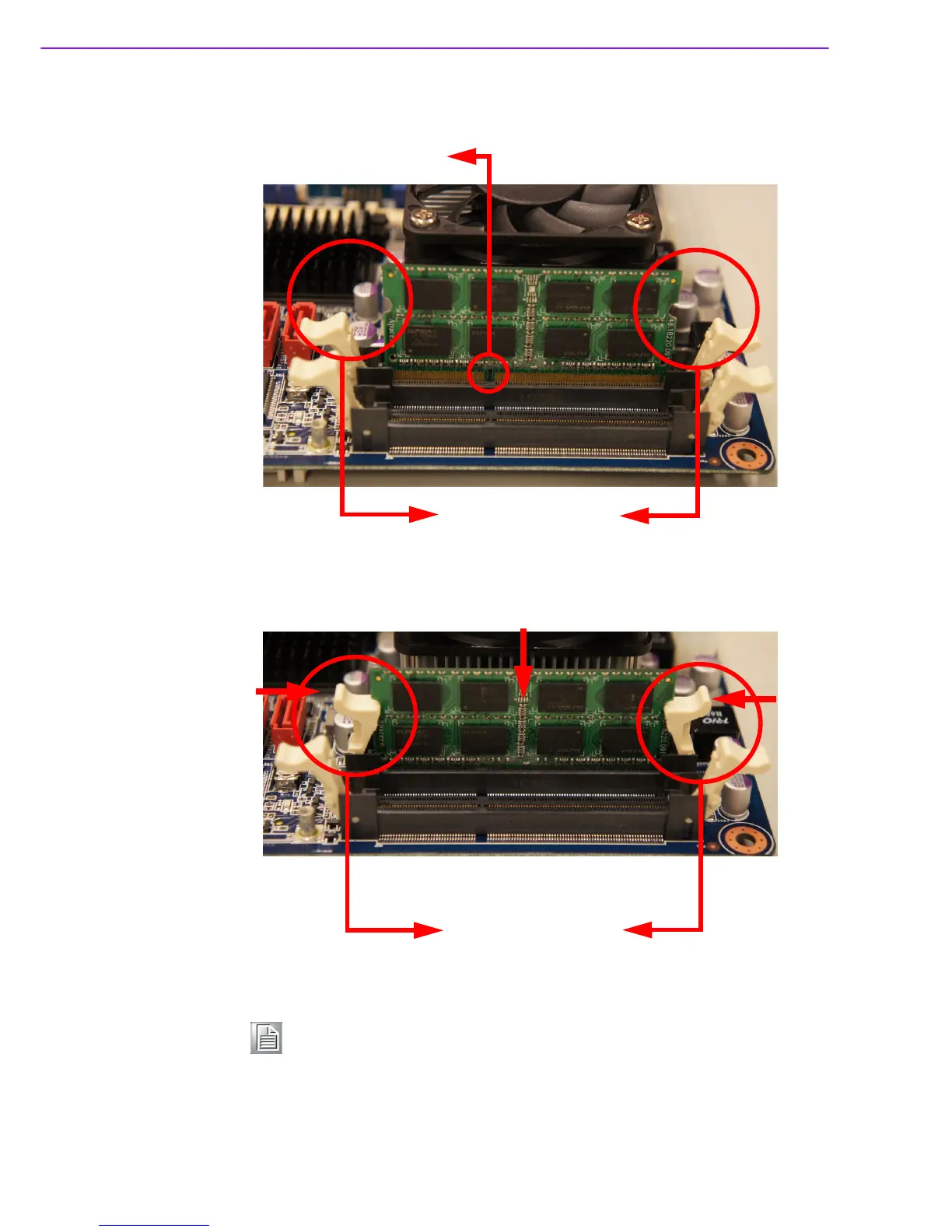

Unlocked retaining clip
DDR3 SO-DIMM notch
Locked retaining clip
