SIMB-M21 User Manual
Chapter 2
Product
Introduction

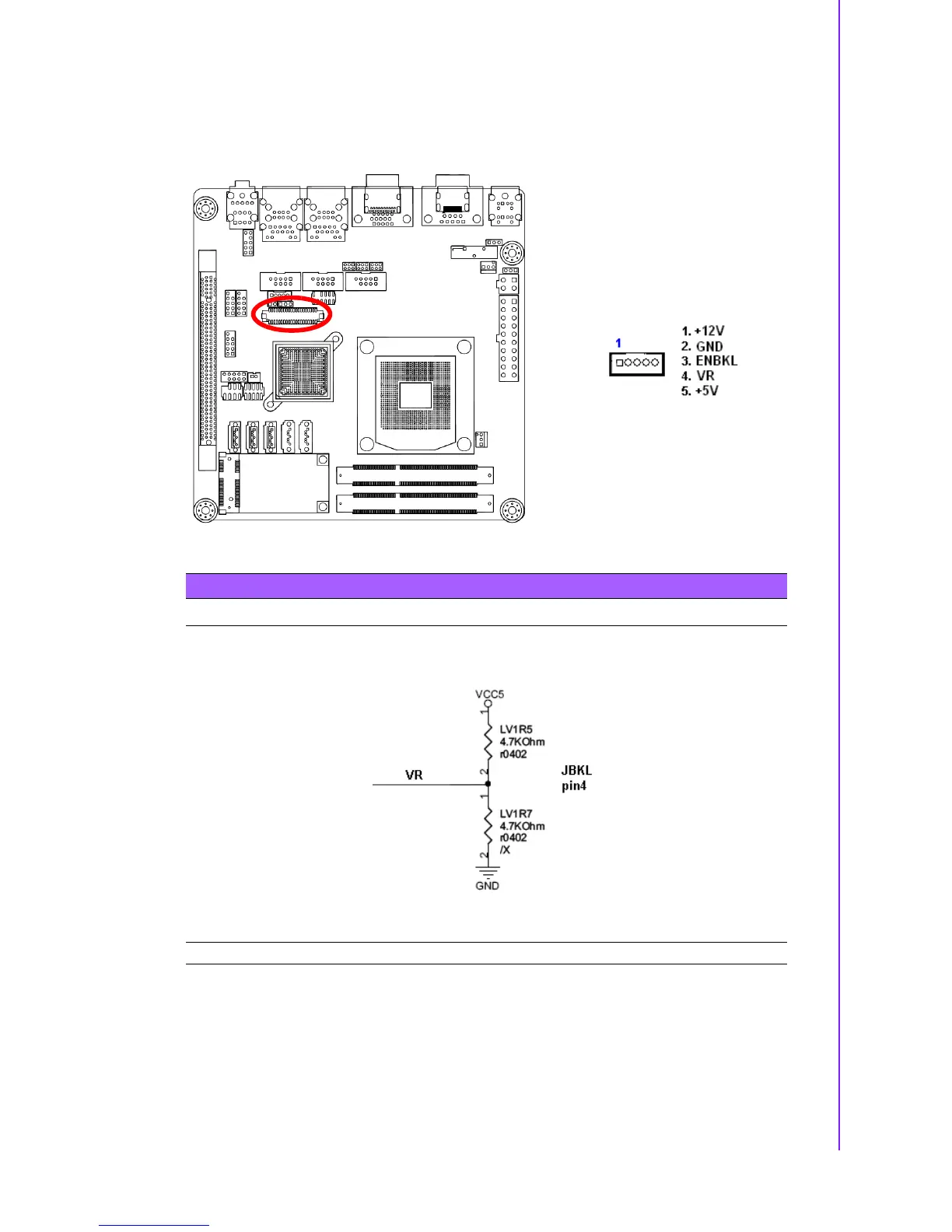

2.8.9
LCD Inverter Conn
ector (JBL1)
The connector is for the control of internal L
VDS brightness.
JL
VDS_BKL2
T
able 2.7: Signal Description
Signal
Signal Description
VR
For inverter with adjustable Backli
ght function, it is possible to con-
trol the LCD brightness through
the VR signal.
V
adj=0.75V ~ 4.25V
(Recommended: 4.7K
Ω
, > 1/16W)
ENBKL
LCD backlight ON/OFF control signal
36
38
Table of Contents
Default Chapter
2
Safety Information
2
Conventions Used in this Guide
3
Packing List
4
Table of Contents
5
Chapter 1 Product Overview
7
Specifications Summary
8
System
8
Display
8
Audio
8
Tpm
8
Ethernet
8
I/O Port
8
Mechanical & Environmental
9
Block Diagram
10
Chapter 2 Product Introduction
11
Product Highlights
12
Product Overview
12
Platform Features and Benefits
12
Key Architecture Features
12
Before You Proceed
13
Motherboard Overview
14
Placement Direction
14
Screw Holes
15
Motherboard Layout
16
Layout Content List
16
Table 2.3: Rear Panel Connector
17
Internal Connector
17
Central Processing Unit (CPU)
18
Installing the CPU
18
Installing the CPU Heatsink and Fan
21
System Memory
22
Overview
22
Table 2.5: 204-Pin DDR3 DIMM Sockets
23
Memory Configurations
23
Installing a SO-DIMM
23
Removing a SO-DIMM
25
Expansion Card
25
Installing an Expansion Card
26
Configuring an Expansion Card
26
PCI Express X16 Slot
26
MINI PCI Express
27
Cfast Card
27
Jumpers
28
Clear CMOS (CMOS1)
28
COM3, COM4, COM5 RI/+5V/+12V Select (JCOMPWR3 JCOMPWR4 JCOMPWR5)
29
LVDS Back Light Controller Form SIO (JBLK1)
29
LVDS Back Light Power Selection
30
AT/ATX Power Mode Select (PSON1)
30
Connectors
31
Rear Panel Connectors
31
CPU and System Fan Connectors (CPU_FAN1, SYS_FAN1)
32
System Panel (F_PANEL)
33
ATX Power Connectors (EATXPWR1, ATX12V1)
34
Serial Port Connectors (COM3, COM4, COM5)
35
GPIO Connector (JGPIO)
35
Audio MIC.-In & Line-Out Connector (FPAUD1)
36
LVDS Connector (LVDS1)
36
LCD Inverter Connector (JBL1)
37
SPI Connector (JSPI)
38
LPC Connector (JLPC1)
38
Serial ATA 3 Connector (SATA1, SATA2)
39
Serial ATA II Connector (SATA3, SATA4, SATA5)
39
Case Open Connectors (JCASE1)
40
USB Connectors (USB45, USB89, USB1011)
41
Chapter 3 BIOS Setup
43
BIOS Setup Program
44
Legend Box
44
List Box
45
Sub-Menu
45
BIOS Menu Screen
45
Main Setup
46
Advanced BIOS Setup
47
PCI Subsystem Setting
48
ACPI Settings
50
Trusted Computing
51
CPU Configuration
52
SATA Configuration
53
Intel TXT(LT) Configuration
54
PCH-FW Configuration
54
Intel Anti-Theft Technology Configuration
56
USB Configuration
57
Super IO Configuration
58
Hardware Monitor
65
Serial Port Console Redirection
66
Intel ICC
67
Sandybridge DTS Configuration
68
Sandybridge PPM Configuration
68
Chipset
69
System Agent (SA) Configuration
70
PCH-IO Configuration
77
Boot
81
Security
82
Save & Exit
83
