SIMB-M21 User Manual 30

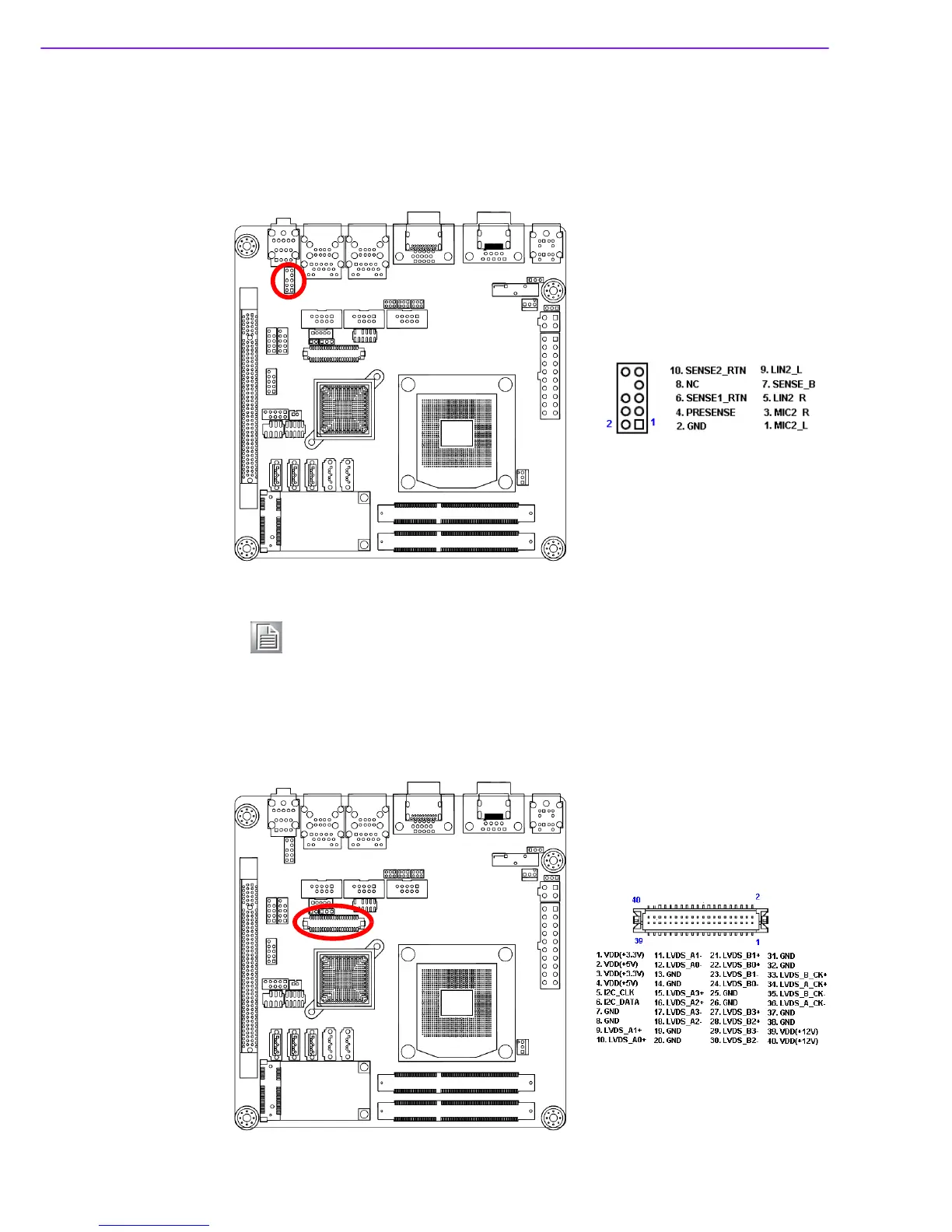

2.8.7 Audio Mic.-In & Line-Out Connector (FPAUD1)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC’97 (optional) audio standard. Connect one end of the
front panel audio I/O module cable to this connector.
2.8.8 LVDS Connector (LVDS1)
The connector is for 24-bit dual channel LVDS panel.
FPAUD1
Important! For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this con-
nector to avail of the motherboard's high-definition audio capability.
LVDS1
