SIMB-M21 User Manual 20
2.6.1 Installing an Expansion Card
1. Before installing the expansion card, read the documentation that came with it
and make the necessary hardware settings for the card.
2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
3. Remove the bracket opposite the slot that you intend to use. Keep the screw for
later use.
4. Align the card connector with the slot and press firmly until the card is com-
pletely seated on the slot.
5. Secure the card to the chassis with the screw you removed earlier.
6. Replace the system cover.
2.6.2 Configuring an Expansion Card
After installing the expansion card, configure it by adjusting the software settings.
1. Turn on the system and change the necessary BIOS settings, if any. See Chap-
ter 2 for information on BIOS setup.
2. Assign an IRQ to the card if needed. Refer to the tables on the next page.
3. Install the software drivers for the expansion card.
2.6.3 PCI Express x16 slot

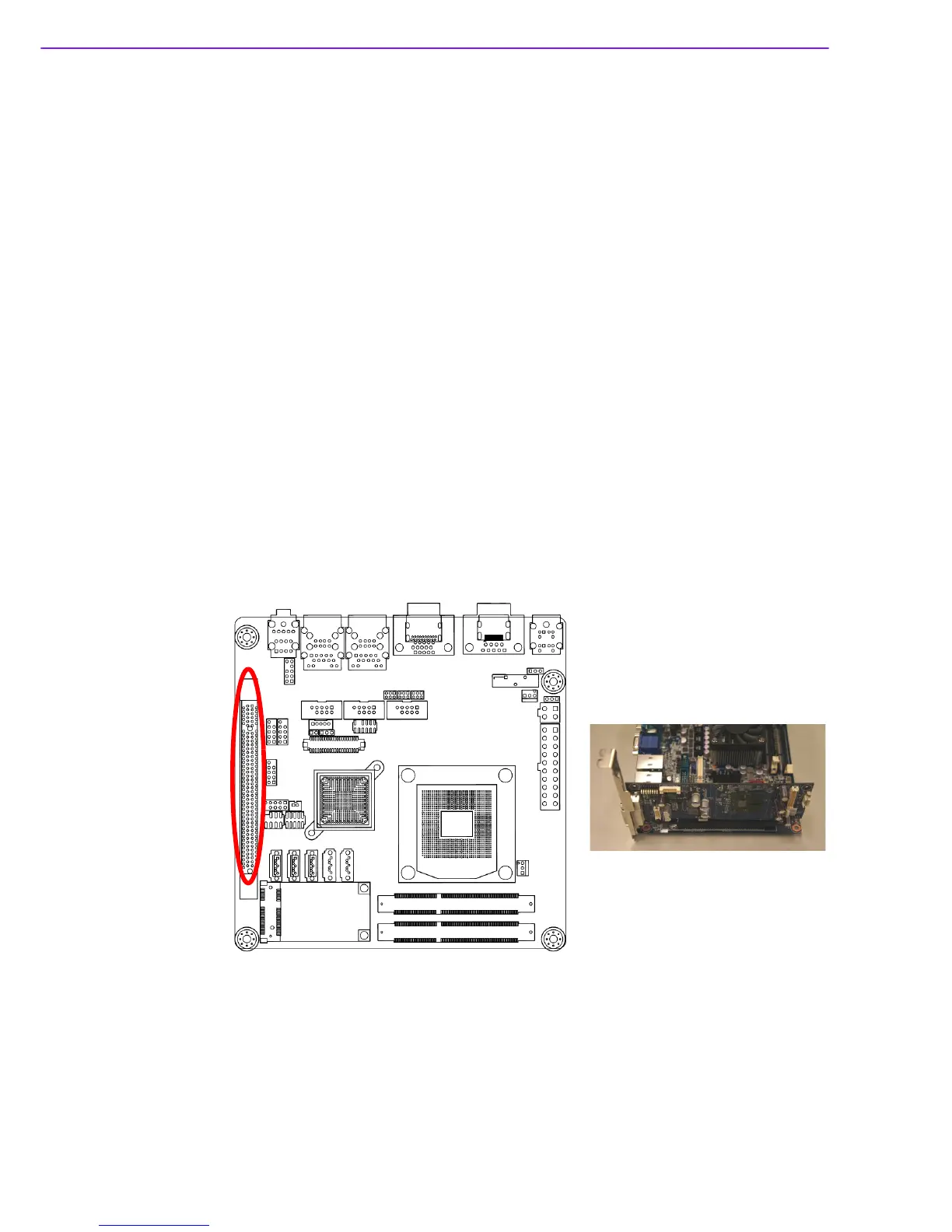

This motherboard supports one PCI Express x16. The following figure shows a
graphics card installed on the PCI Express x16 slot.
