29
SIMB-M21 User Manual
Chapter 2
Product
Introduction

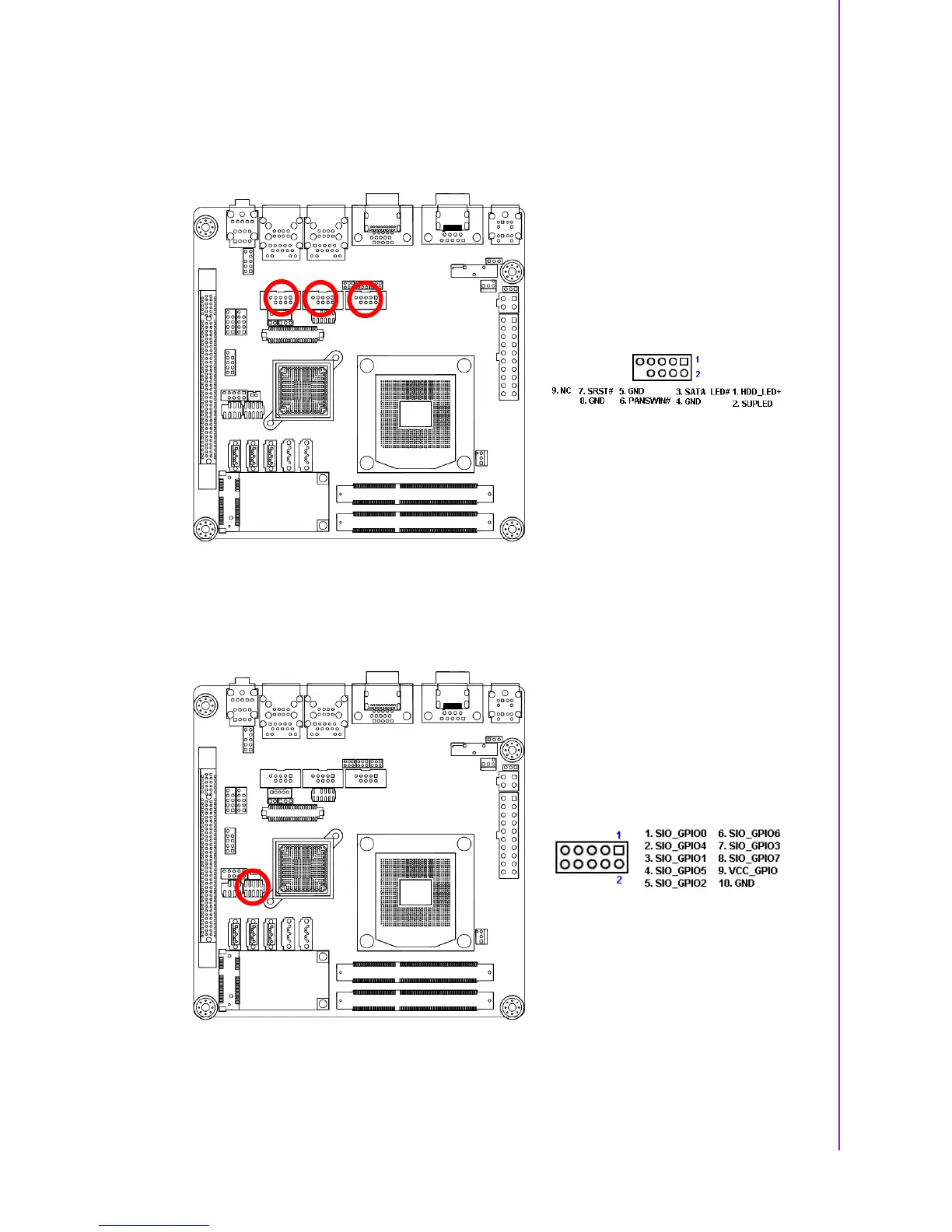

2.8.5
Serial Port connectors
(COM3, COM4, COM5)
This connector is for a serial (COM) p
ort. Connect the serial port module cable
to this
connector
, then install the module to a slot
opening at the back of
the system chassis.
2.8.6
GPIO Connector (JGPIO)
This connector is for GPIO function.
COM3,
COM4, COM5
JDIO1
34
36
