2.8.2 CPU and System fan connectors (CPU_FAN1, SYS_FAN1)
The fan connectors support cooling fans of 280mA (3.36 W max.) at 4800rpm or a
total of 1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan connec-
tors on the motherboard, making sure that the black wire of each cable matches the
ground pin of the connector.

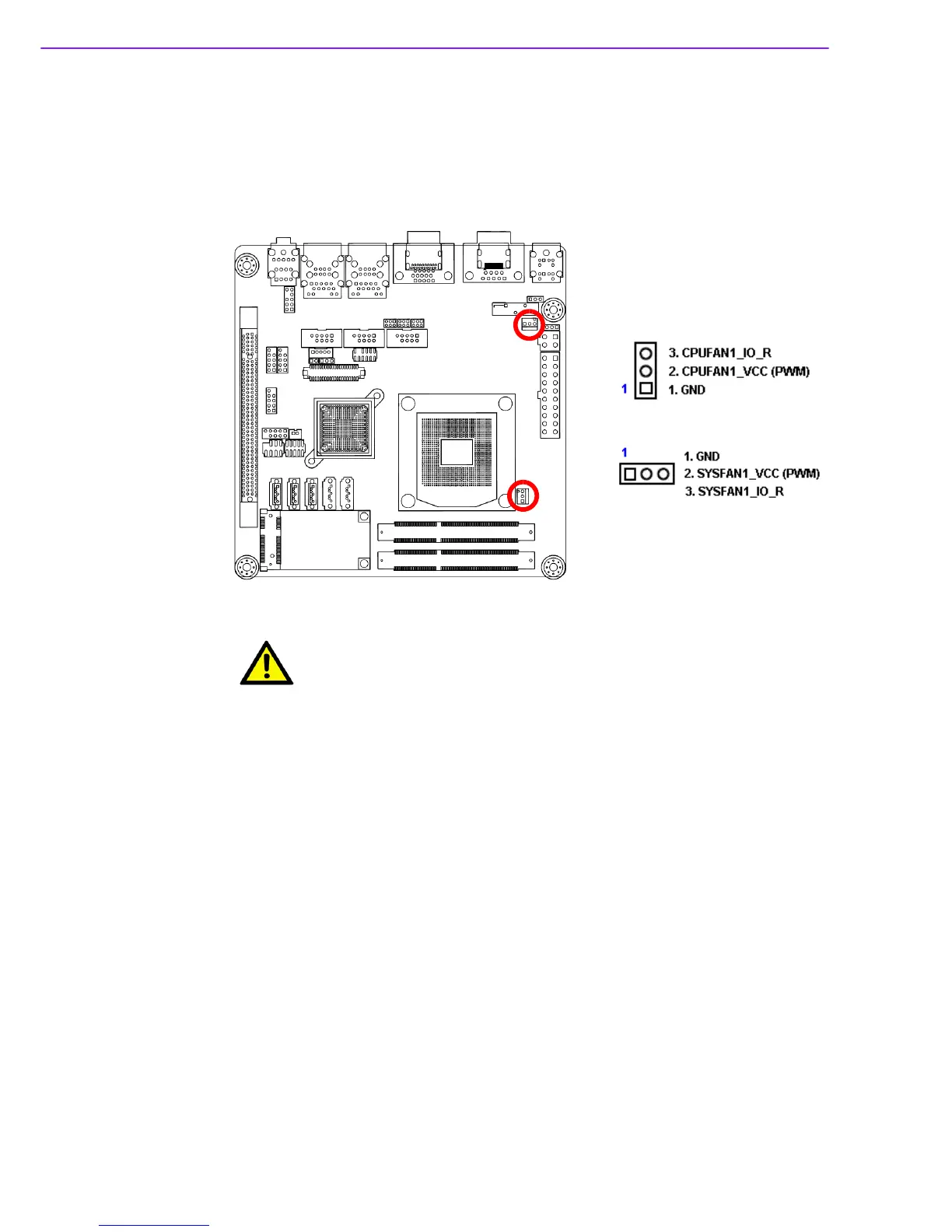

CPU_FAN1
SYS_FAN1
Caution! Do not forget to connect the fan cables to the fan connectors. Insuffi-
cient air flow inside the system may damage the motherboard compo-
nents.
These are not jumpers! DO NOT place jumper caps on the fan connec-
tors.
