SIMB-M21 User Manual 54
3.4.10.2 Serial Port 1 configuration
Set Parameters of Serial Port 3 (COM3).

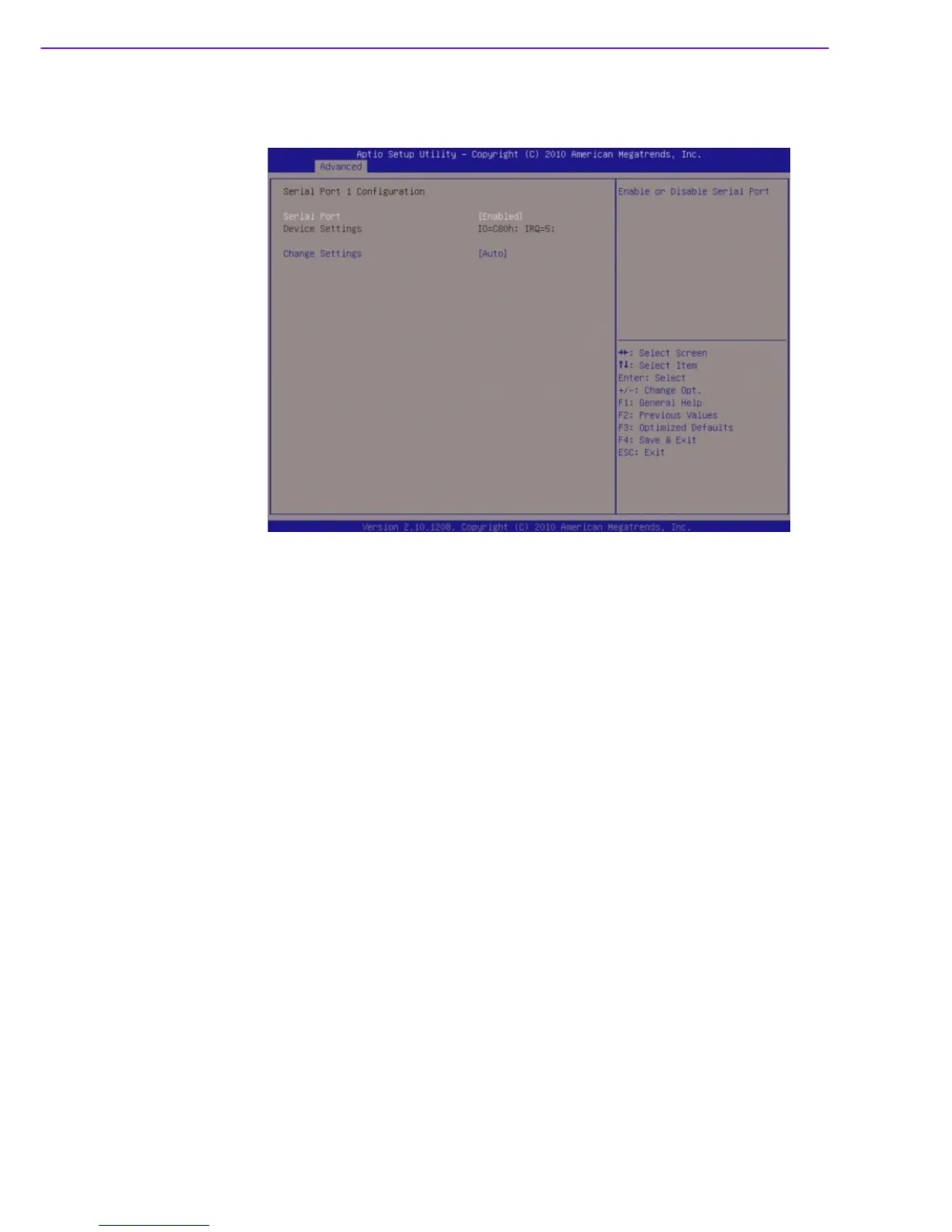

Serial Port 1 Configuration
 Serial Port [Enable]
Enable or Disable Serial Port.
Configuration options: [Disabled] [Enabled].
 Device Setting [IO=C80h; IRQ=5]
 Change Setting[Auto]
Select an optimal setting for Super IO device.
Configuration options: [Auto] [IO=C80h; IRQ=5] [IO=C80h; IRQ=5, 7, 9. 10, 11]
[IO=C88h; IRQ=5, 7, 9. 10, 11] [IO=C90h; IRQ=5, 7, 9. 10, 11] [IO=C98h;
IRQ=5, 7, 9. 10, 11].
