3.4.10.6 Digital I/O Configuration

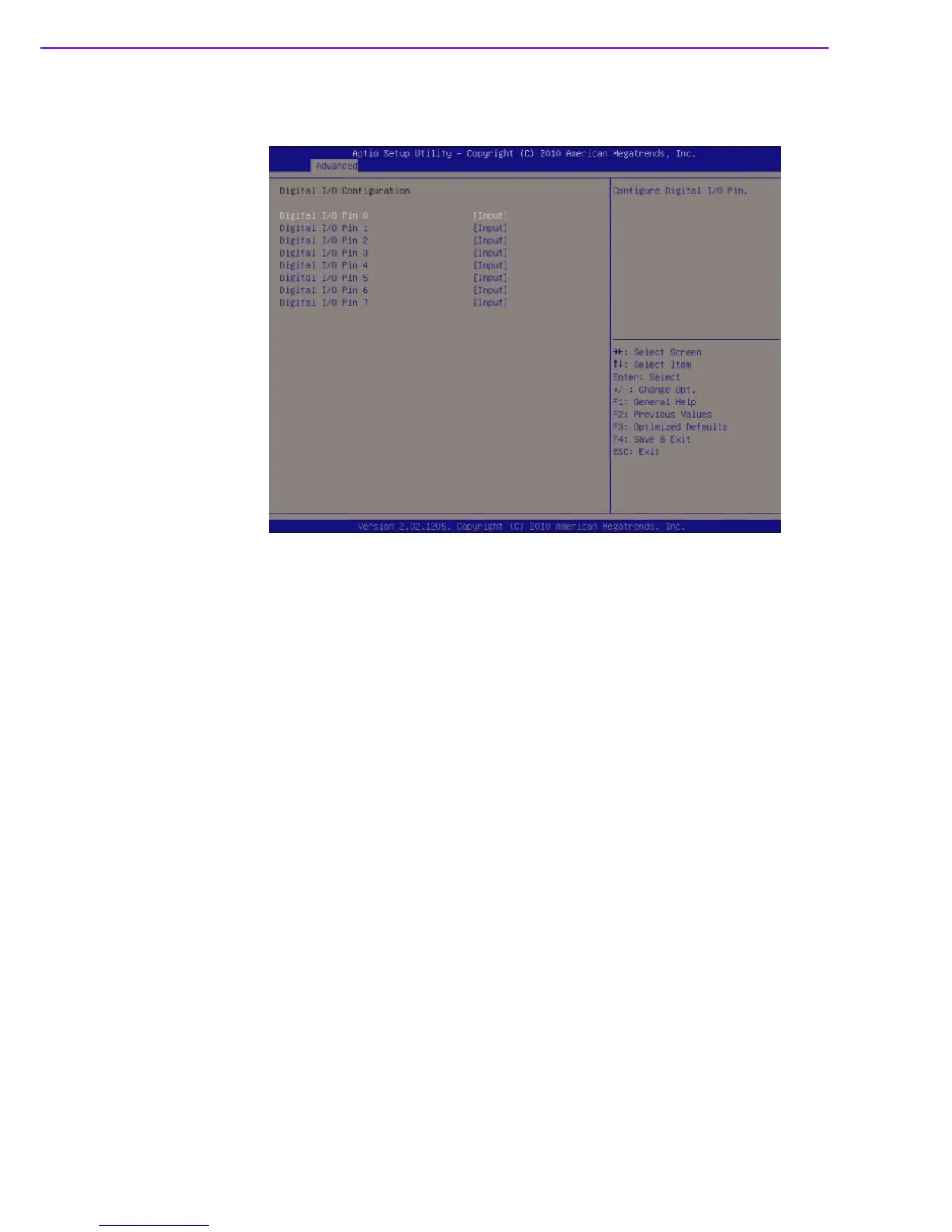

Digital I/O Configuration
 Digital I/O Pin 0 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 1 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 2 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 3 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 4 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 5 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 6 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
 Digital I/O Pin 7 [Input]
Configure Digital I/O Pin.
Configuration options: [Input][Output High][Output Low].
