13 UNO-148 User Manual
Chapter 2 Hardware Functionality
2.2.2 UNO-148 Base Unit with UNO-148-IS2EA Expansion Unit (1 x
iDoor and 1 x 2.5”SSD/HDD)

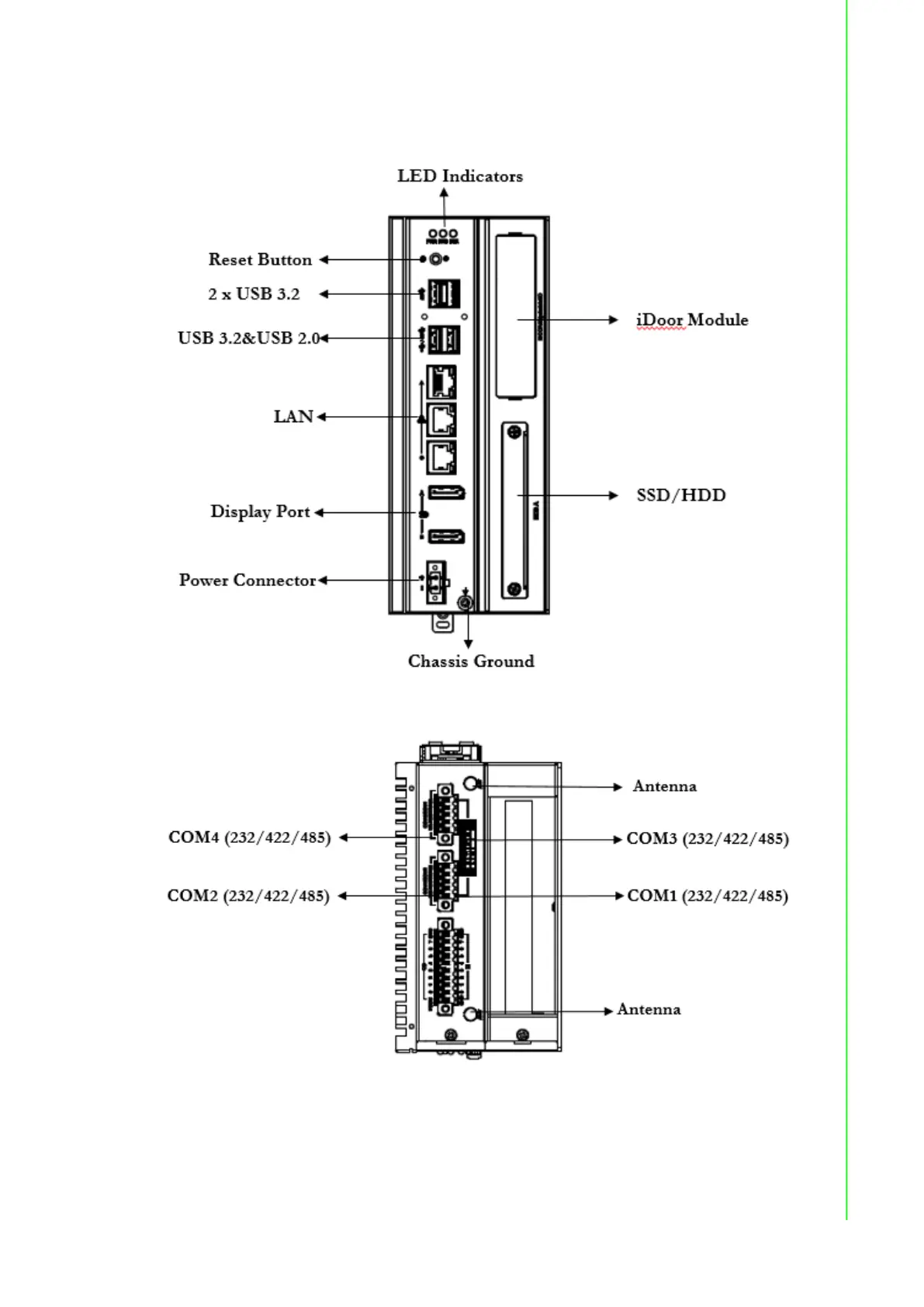

Figure 2.5 Front Panel of UNO-148
Figure 2.6 Top View of UNO-148
