55 UNO-148 User Manual

Appendix A System Settings/Pin Assignment

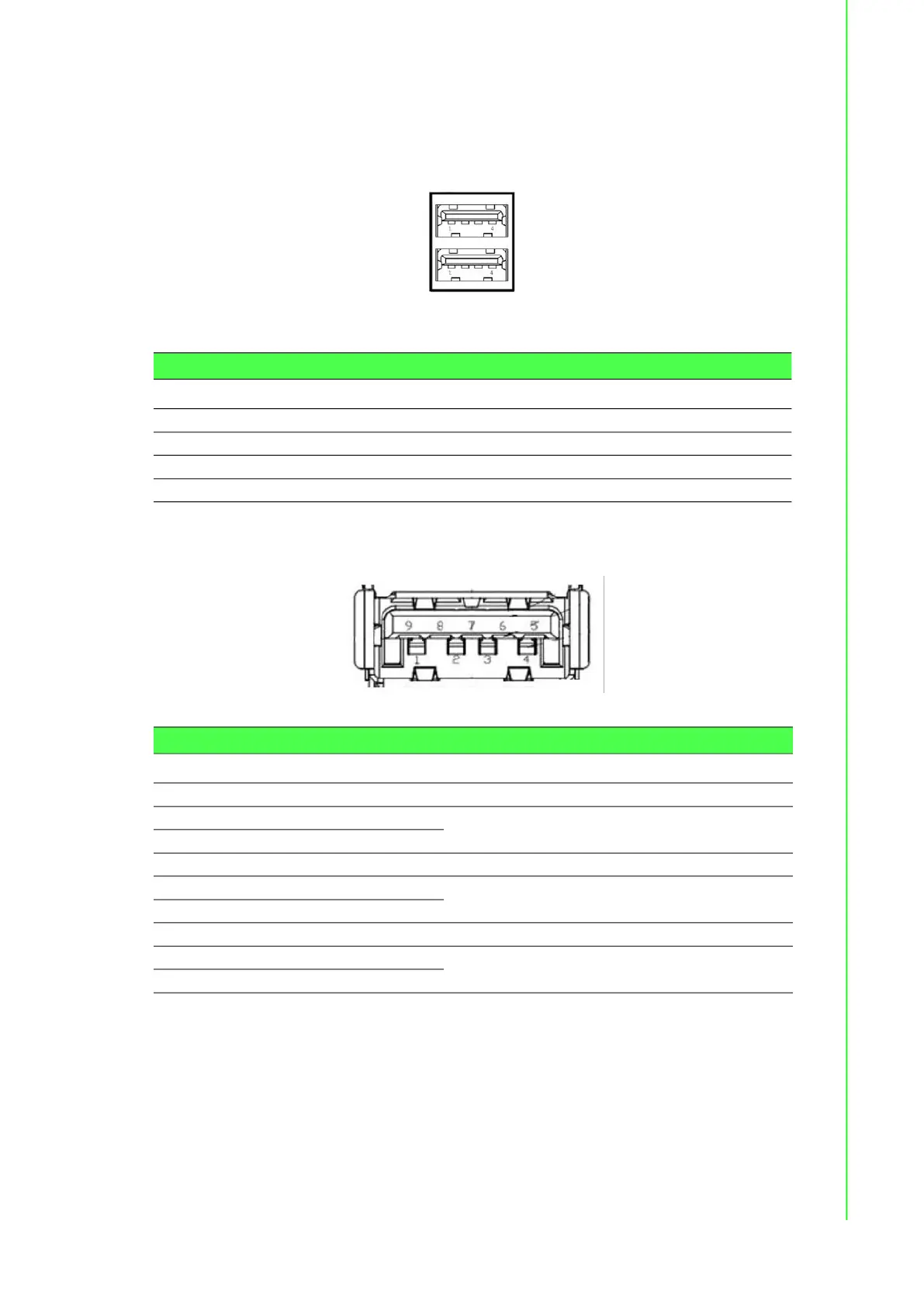

A.3 USB Connector (CN5, CN6)

A.3.1 USB 2.0 Connector

A.3.2 USB 3.0 Connector

Table A.3: Connector Pin Assignments

Pin Signal Name Description

1 VBUS Power

2 D- USB2.0 differential pair

3 D+

4 GND Ground for power return

Table A.4: USB 3.0 Connector Pin Assignments

Pin Signal Name Description

1 VBUS Power

2 D-

USB2.0 differential pair

3 D+

4 GND Ground for power return

5 StdA_SSRX-

SuperSpeed receiver differential pair

6 StdA_SSRX+

7 GND_DRIAN Ground for signal return

8 StdA_SSTX-

SuperSpeed transmitter differential pair

9 StdA_SSTX+
