UNO-148 User Manual 14
2.2.3 UNO-148 Base Unit with UNO-148-ID1EA Expansion Unit
(iDoor x 1)

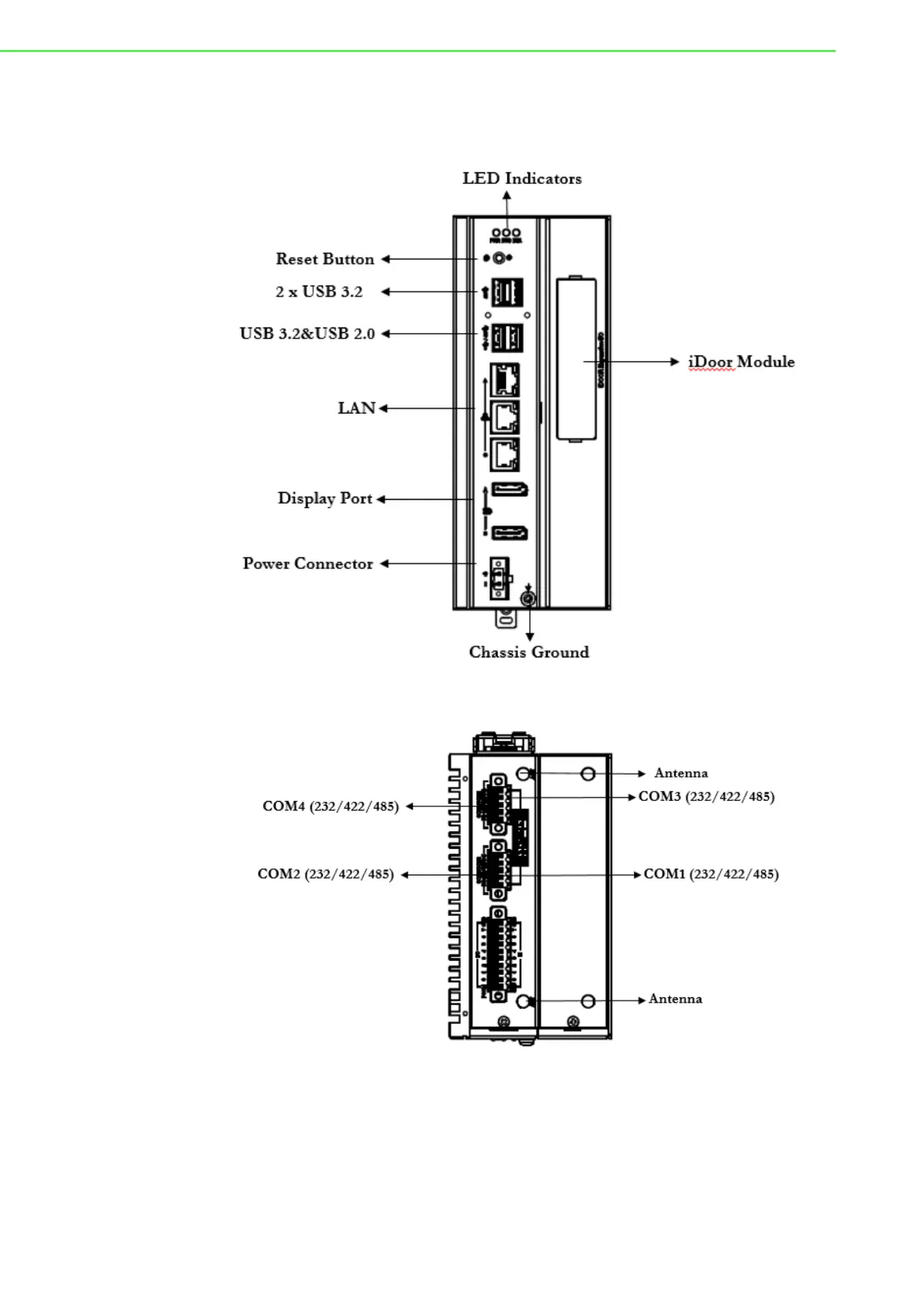

Figure 2.7 Front Panel of UNO-148
Figure 2.8 Top View of UNO-148
