UNO-148 User Manual
56
A.4

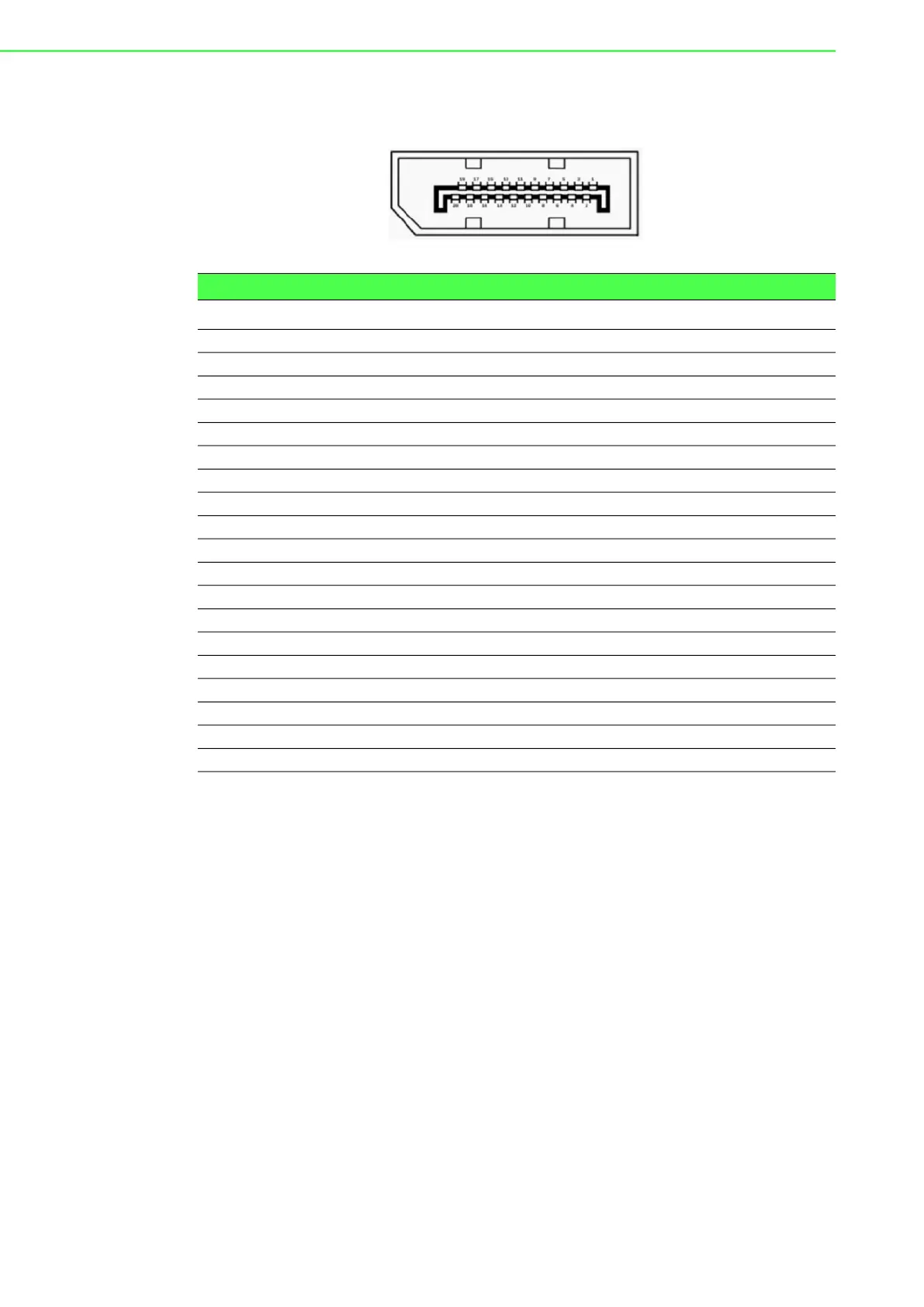

Display Connector (CN2, CN3)
T
able
A
.5: DisplayPort
Adaptor Cable Pin
Assignments
Pin
Signal Name
1
ML_Lane 0 (p)
2
GND
3
ML_Lane 0 (n)
4
ML_Lane 1 (p)
5
GND
6
ML_Lane 1 (n)
7
ML_Lane 2 (p)
8
GND
9
ML_Lane2 (2)
10
ML_Lane 3
(
p)
1
1
GND
12
ML_Lane 3
(
n)
13
CONFIG1
14
CONFIG2
15
AUX CH (p
)
16
GND
17
AUX CH (n
)
18
Hot Plug
19
Return
67
69
Table of Contents
Default Chapter
9
Table of Contents
9
Chapter 1 Overview
13
Introduction
14
Safety Precautions
14
Packing List
15
Hardware Specifications
15
General
15
System Hardware
16
I/O Interfaces
17
Environment
17
Certification
17
Extension Kit (Optional)
18
Dimensions
19
Chapter 2 Hardware Functionality
21
Introduction
22
External I/O Connector
24
UNO-148 Base Unit
24
UNO-148 Base Unit with UNO-148-IS2EA Expansion Unit
25
Idoor and 1 X 2.5"SSD/HDD)
25
UNO-148 Base Unit with UNO-148-ID1EA Expansion Unit (Idoor X 1)
26
UNO-148 Base Unit with UNO-148-P11EA Expansion Unit (1X Pcie Expansionx4)
27
Power Connector
28
LAN: Ethernet Connector
28
USB Connector
28
Display Connector
28
COM Connector
29
Digital Input and Output
30
Internal I/O Connectors and Switches
32
Connector
34
Mpcie Connector
34
Nano SIM Slot
34
Others
34
LED Indicators
34
Reset Buttons
34
Antenna Hole
35
Chapter 3 Initial Setup
37
Chassis Grounding
38
Connecting Power
39
Storage Installation (Optional)
40
Installing a M.2 2280 Nvme
40
Installing M.2 3042 Module
42
Installing M.2 3052 Module
44
Installing M.2 2230 Module
45
Installing Mpcie
47
Din-Rail Installation
48
Wireless Module Installation (Optional)
49
Extension Kit Installation (Optional)
50
Idoor and HDD/SSD Storage Extension Kit (UNO-148-IS2EA)
50
Idoor Extension Kit (UNO-148-ID1EA)
54
Pcie Expansionx4 (UNO-148-P11EA)
58
Remote Power & Reset Settings
62
BIOS Setting
63
Appendix A System Settings/Pin Assignment
65
Power Connector (CN1)
66
LAN: Ethernet Connector (CN4)
66
USB Connector (CN5, CN6)
67
USB 2.0 Connector
67
USB 3.0 Connector
67
Display Connector (CN2, CN3)
68
Connector (CN15)
69
Mpcie Connector (MINI1)
70
COM Port RS232/422/485 Setting
71
COM1/COM2 TS232/422/485 Setting (SW1)
71
COM3/COM4 RS232/422/485 Setting (SW2)
71
COM Port RS422/485 Termination Resistor Setting
73
BIOS Update Setting
73
AT/ATX Setting (SW8)
74
Riser Connector (CN12)
75
