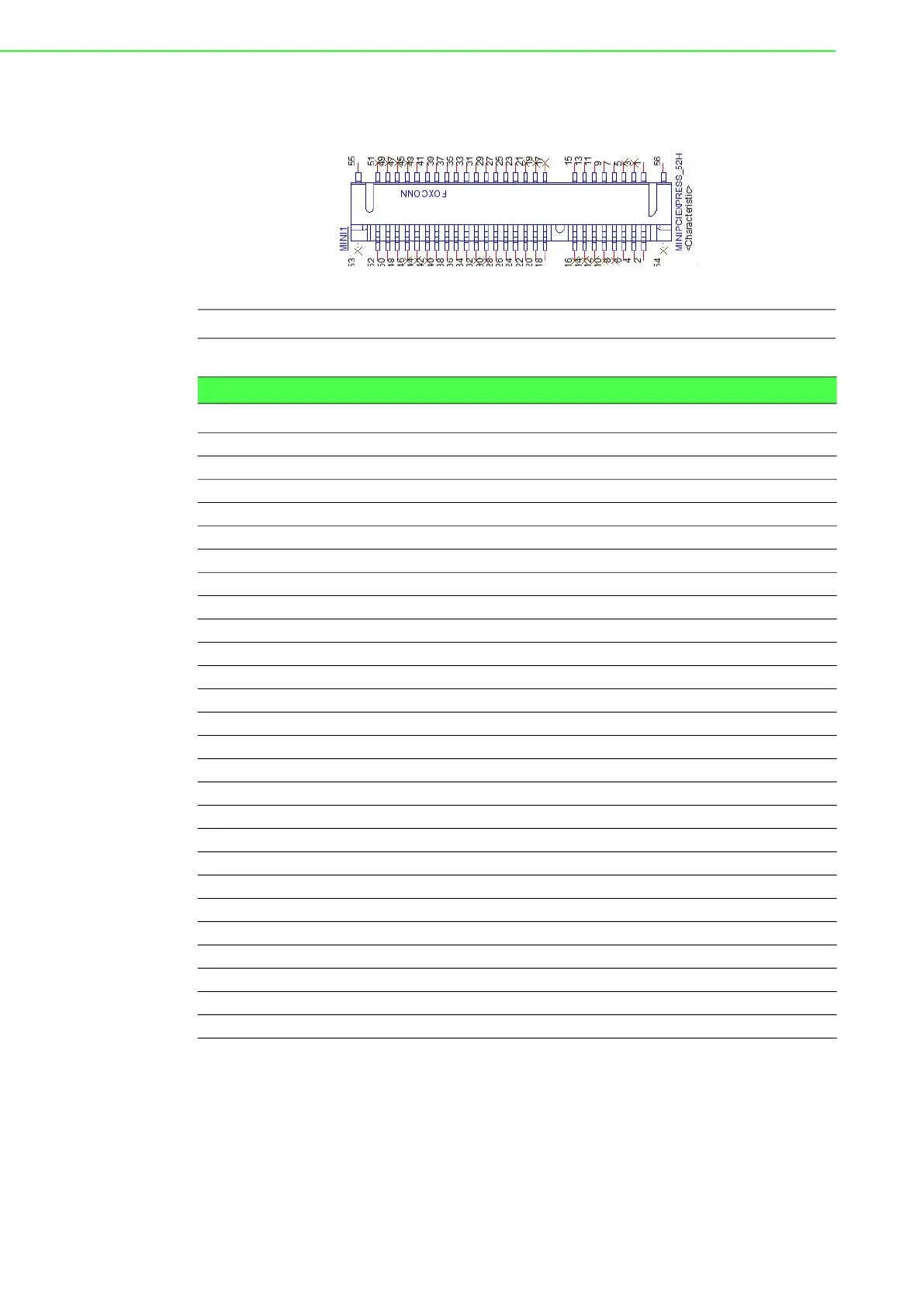

UNO-148 User Manual 58
A.6 mPCIe Connector (MINI1)
Pin Signal Name Pin Signal Name
Table A.7: mPCIe Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 PCIE_WAKE#_3.3 2 +V3.3_MINI
3 NC 4 GND
5 NC 6 +V1.5
7 +V3.3 8 NC
9 GND 10 NC
11 CLK_PCIE_mPCIe1- 12 NC
13 CLK_PCIE_mPCIe1+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 WIFI_DISABLE#
21 NC 22 MINI_PLTRST#
23 PCIE_mPCIe_RX4- 24 +V3.3_MINI
25 PCIE_mPCIe_RX4+ 26 GND
27 GND 28 +V1.5
29 GND 30 NC
31 PCIE_TX2-_Z 32 NC
33 PCIE_TX2+Z 34 GND
35 GND 36 USB_Z_P0-
37 GND 38 USB_Z_P0+
39 +V3.3_MINI 40 GND
41 +V3.3_MINI 42 NC
43 MPCIE_PWRSEL 44 NC
45 NC 46 NC
47 NC 48 +V1.5
49 NC 50 GND
51 NC 52 +V3.3_MINI
