Chapter 2 Hardware Functionality
Digital Output
 Output Channels 8
 Output Voltage: 5~30 V
DC
 Output Capability Sink: 500 mA max./channel
 Opto-Isolator Response 50 μs
Isolated Digital Input
Each of the 8 x isolated digital input channels accept voltages from 0 to 30 V. The fol-
lowing figure shows how to connect an external input source to the isolated inputs of
UNO- 148.

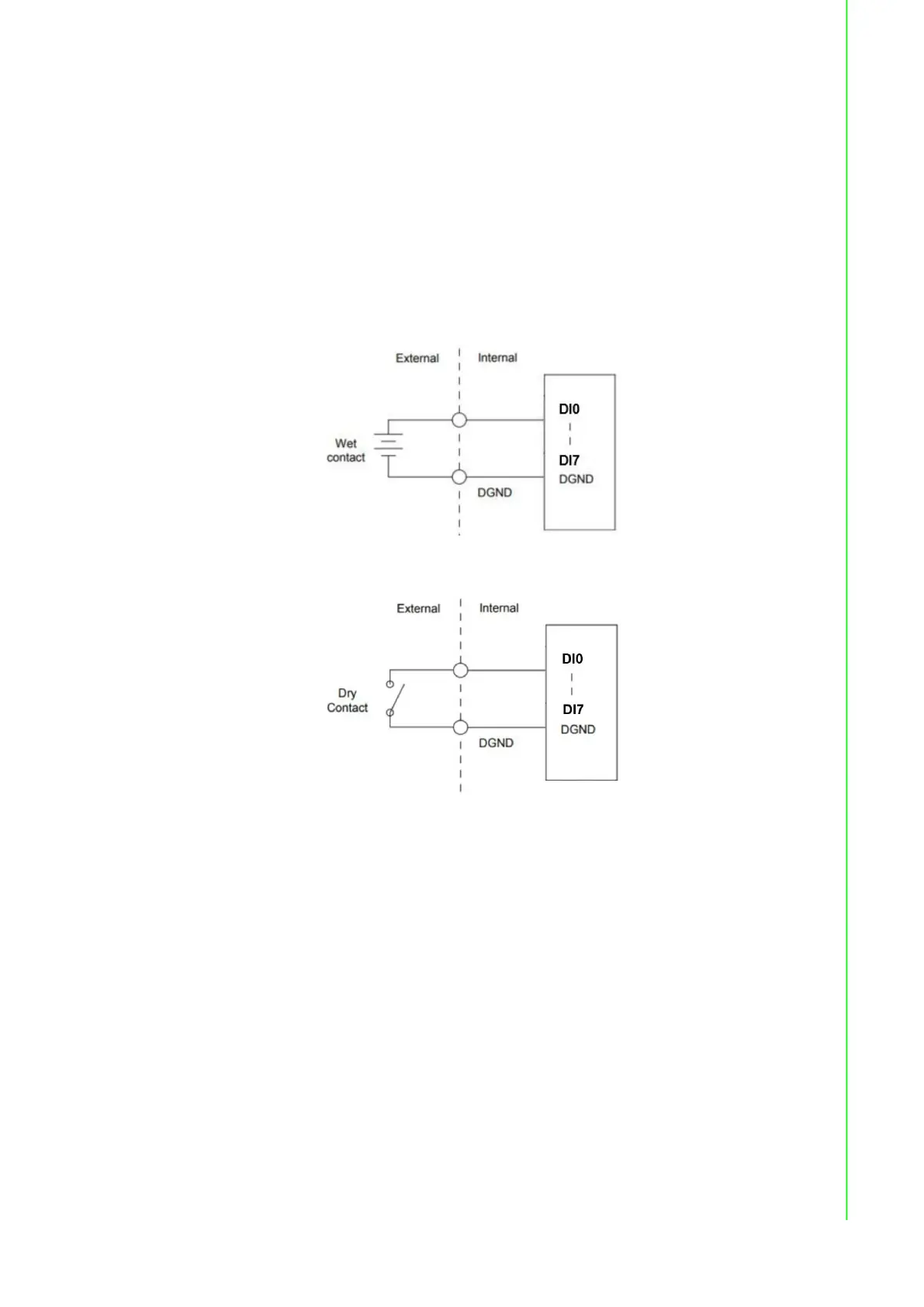

Figure 2.11 Isolated DI Wet Connection Diagram
Figure 2.12 Isolated DI Dry Connection Diagram
