41 UNO-148 User Manual
Chapter 3 Initial Setup

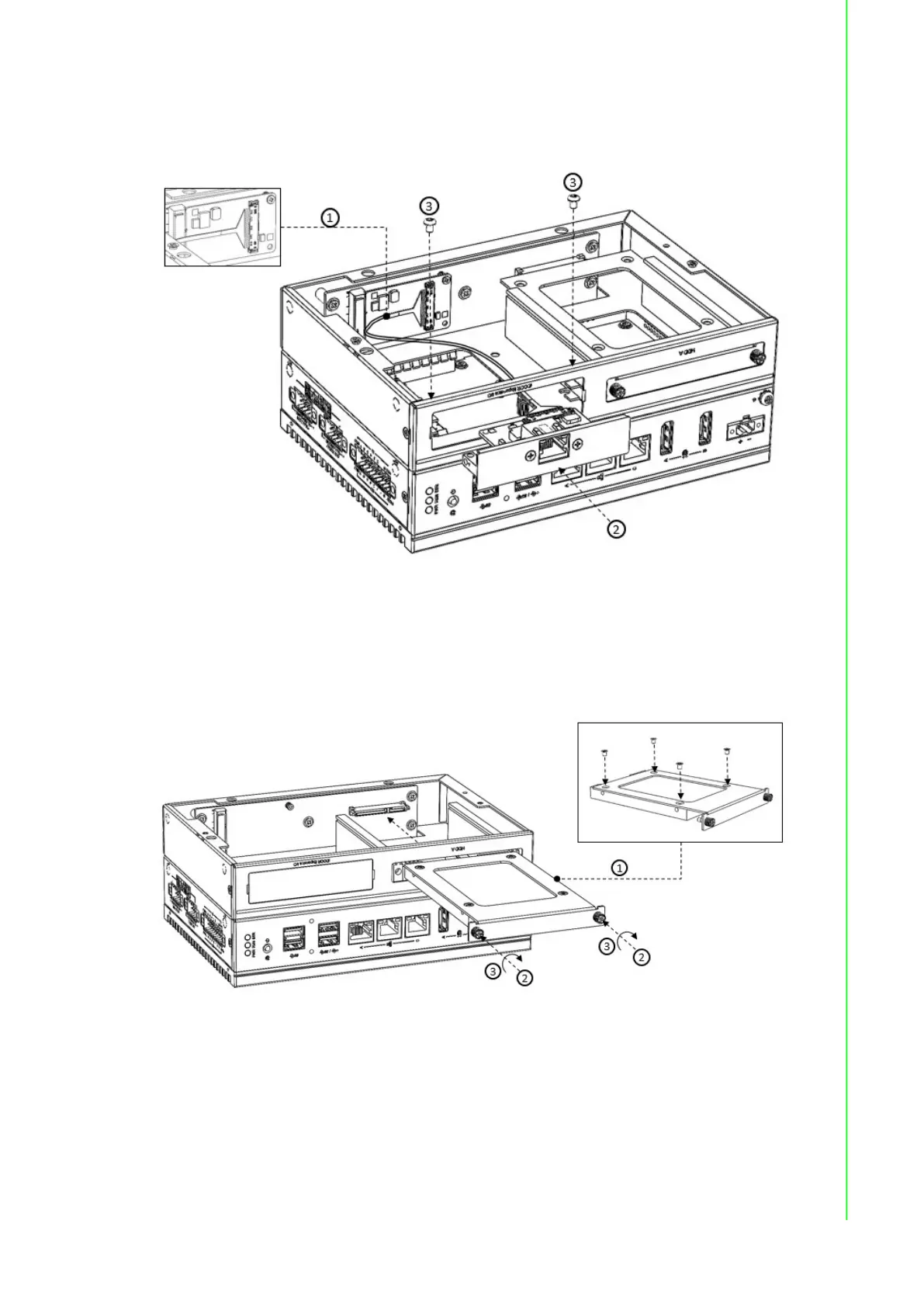

6. Connect the mPCIe connector of iDoor module onto the board of the UNO-148,
and fix it with the 2 x M2x4L pcs screw from the accessory bag of iDoor exten-
sion kit.
7. Detach the HDD/SSD bracket from 2nd stack extension kit, then fix the 2.5”
HDD/ SSD to the HDD bracket with the 4 x M3x4L screws from the accessory
bag of iDoor extension kit.
8. Fix the HDD/SSB bracket back onto the extension kit with the provided screws
from Step4.
