Advantech UNO-148 - Page 72

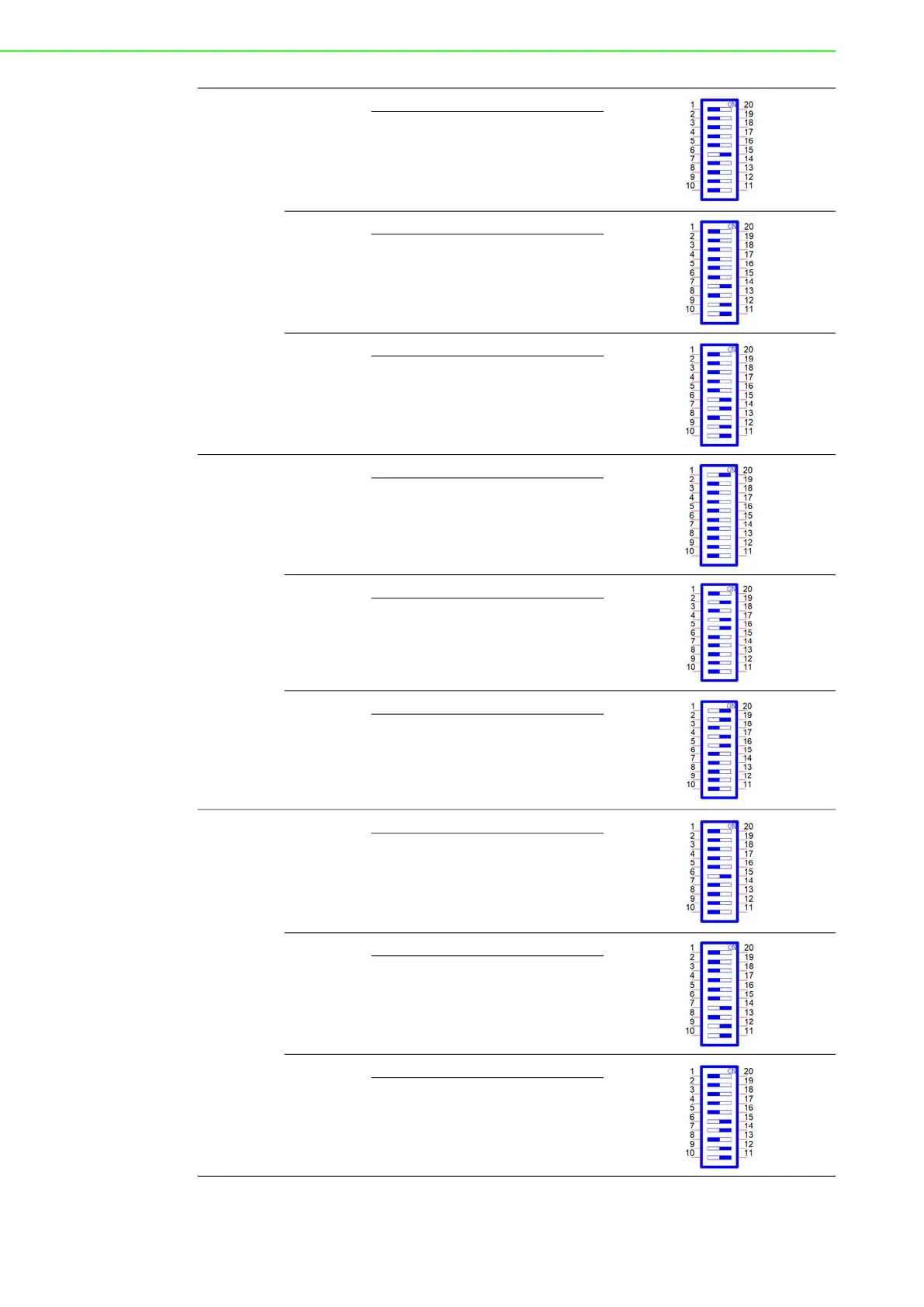

UNO-148 User Manual 60
COM2
RS232
Mode
Bit 6 ON
Bit 1,2,3,4,5,7,8,9,10 OFF
RS485
Mode
Bit 7,9,10 ON
Bit 1,2,3,4,5,7,8 OFF
RS422
Mode
Bit 6,7,9,10 ON
Bit 1,2,3,4,5,8 OFF
COM3
RS232
Mode
Bit 1 ON
Bit 2,3,4,5,6,7,8,9,10 OFF
RS485
Mode
Bit 2,4,5 ON
Bit 1,3,6,7,8,9,10 OFF
RS422
Mode
Bit 1,2,4,5 ON
Bit 3,6,7,8,9,10 OFF
COM4
RS232
Mode
Bit 6 ON
Bit 1,2,3,4,5,7,8,9,10 OFF
RS485
Mode
Bit 7,9,10 ON
Bit 1,2,3,4,5,7,8 OFF
RS422
Mode
Bit 6,7,9,10 ON
Bit 1,2,3,4,5,8 OFF
