advantest corporation TR5821 - Page 101

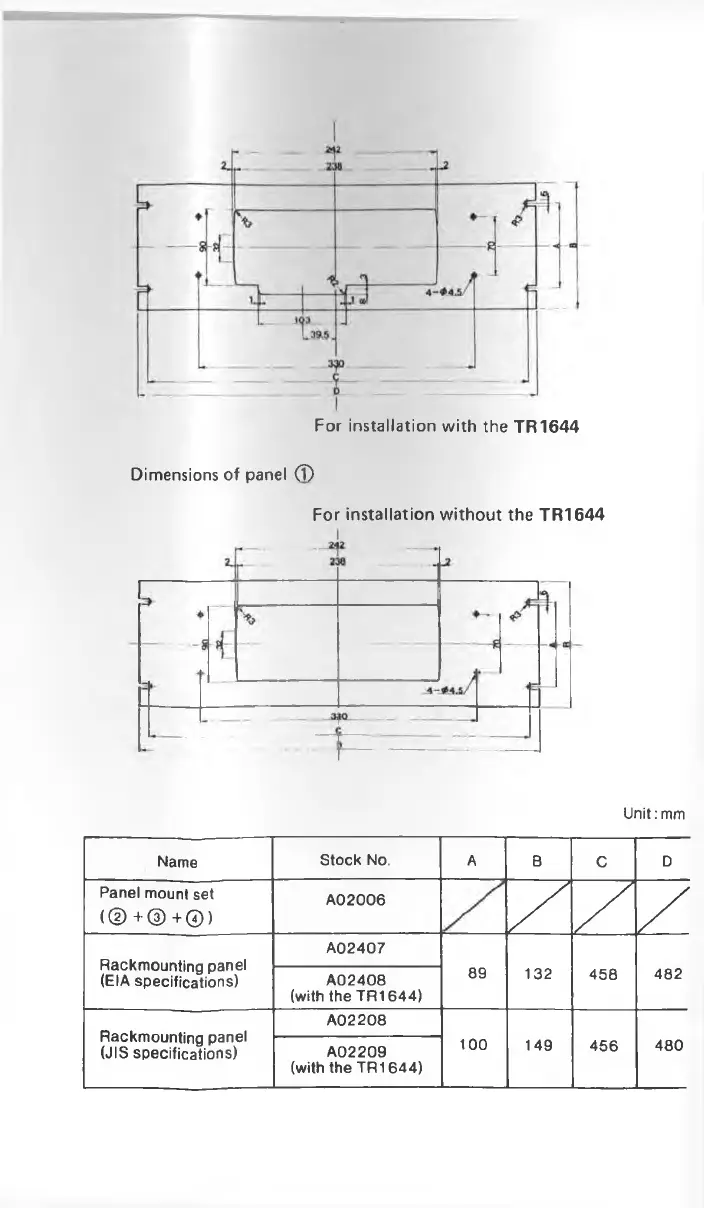

For installation with the TR1644
D im ensions of panel (T)
F o r in sta lla tio n w ith o u t th e T R 1 6 4 4
Unit: mm
Name
Stock No.
A
B
C
D
Panel mount set
( © + © + © )
A02006
/
/
/
Rackmounting panel
(EIA specifications)
A02407
A02408
(with the TR1644)
89
132
458
482
Rackmounting panel
(JIS specifications)
A02208
A02209
(with the TR1644)
100
149
456
480
