3-3-4. Frequency Measurement
(1) FREQ. A (10 Hz to 120 MHz) (TR582175822/5823)

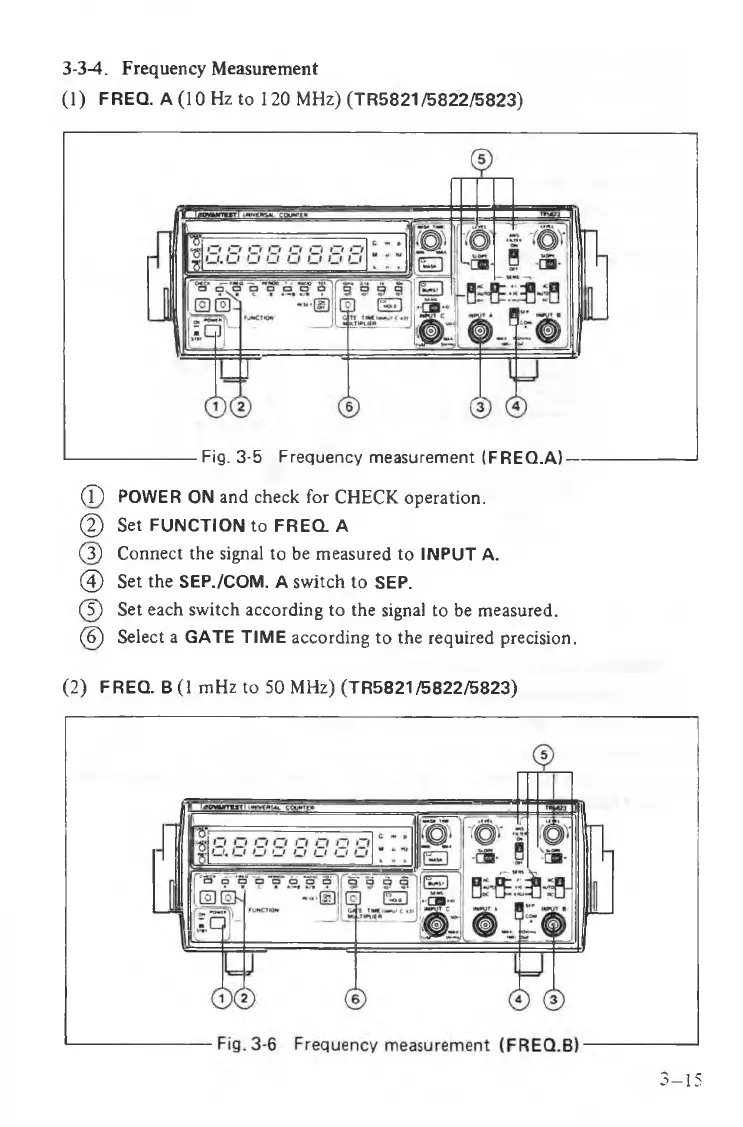

----------------------Fig. 3-5 Frequency measurement (FREQ.A) —
(T) POWER ON and check for CHECK operation.
© Set FUNCTION to FREQ. A
(3) Connect the signal to be measured to INPUT A.
@ Set the SEP./COM. A switch to SEP.
(5) Set each switch according to the signal to be measured.
(6) Select a GATE TIME according to the required precision.
(2) FREQ. B (1 mHz to 50 MHz) (TR5821/5822/5823)
3-15
To Next Page
