(2) Set FUNCTION to T.l. A B.
(3) For single-signal measurement, set the SEP./COM. A switch to COM. A
with the signal of interest connected to INPUT A.
(4) When two signals are to be measured, connect the start signal (the signal
generated first) to INPUT A and the stop signal (the signal generated
later) to INPUT B, then set the SEP./COM. A switch to SEP.
(5) Set the SLOPE switch according to the start and stop points on the
slope.
(6) Set each switch to suit the signal to be measured.
(7) Select a MULTIPLIER according to the required precision.
3-3-7. Frequency Ratio Measurement (RATIO A/B)
(T) POWER ON and check for CHECK operation.
----------------------------

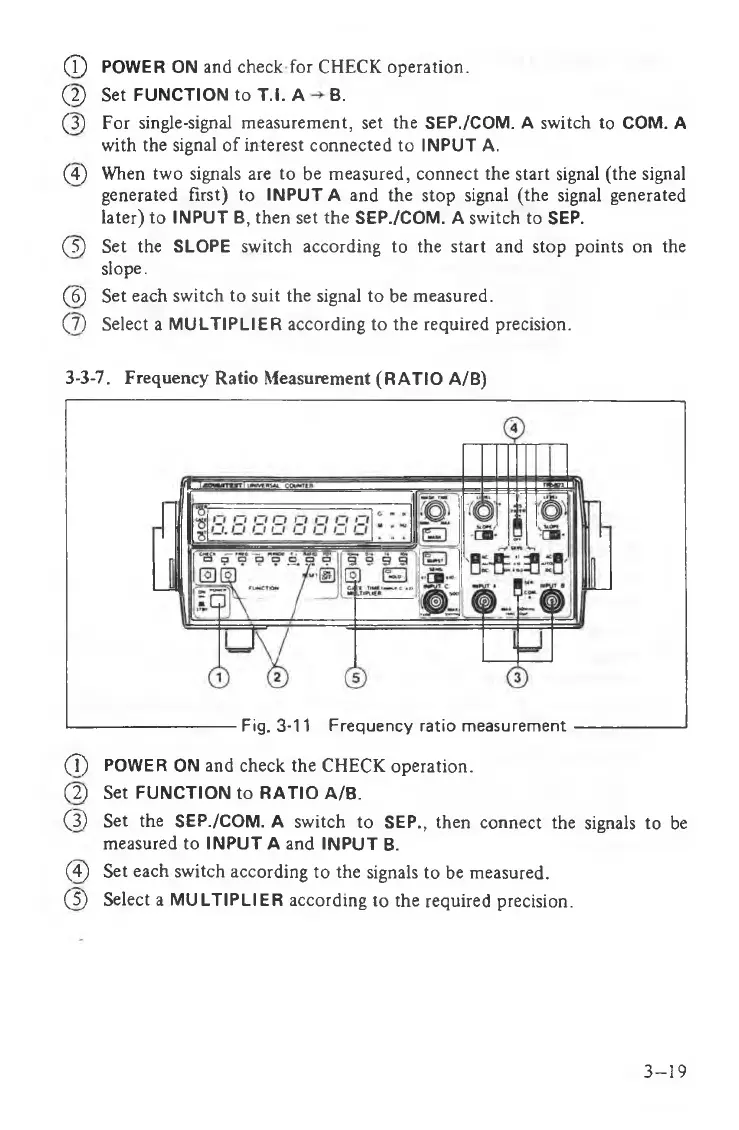

Fig. 3-11 Frequency ratio measurement
-------------------
(7) POWER ON and check the CHECK operation.
(2) Set FUNCTION to RATIO A/B.
(3) Set the SEP./COM. A switch to SEP., then connect the signals to be
measured to INPUT A and INPUT B.
(4) Set each switch according to the signals to be measured.
(5) Select a MULTIPLIER according to the required precision.
