INPUT C connector of the TR5823 is fuse protected. Use the following
procedure to replace the fuse.
(1) Fuse rating

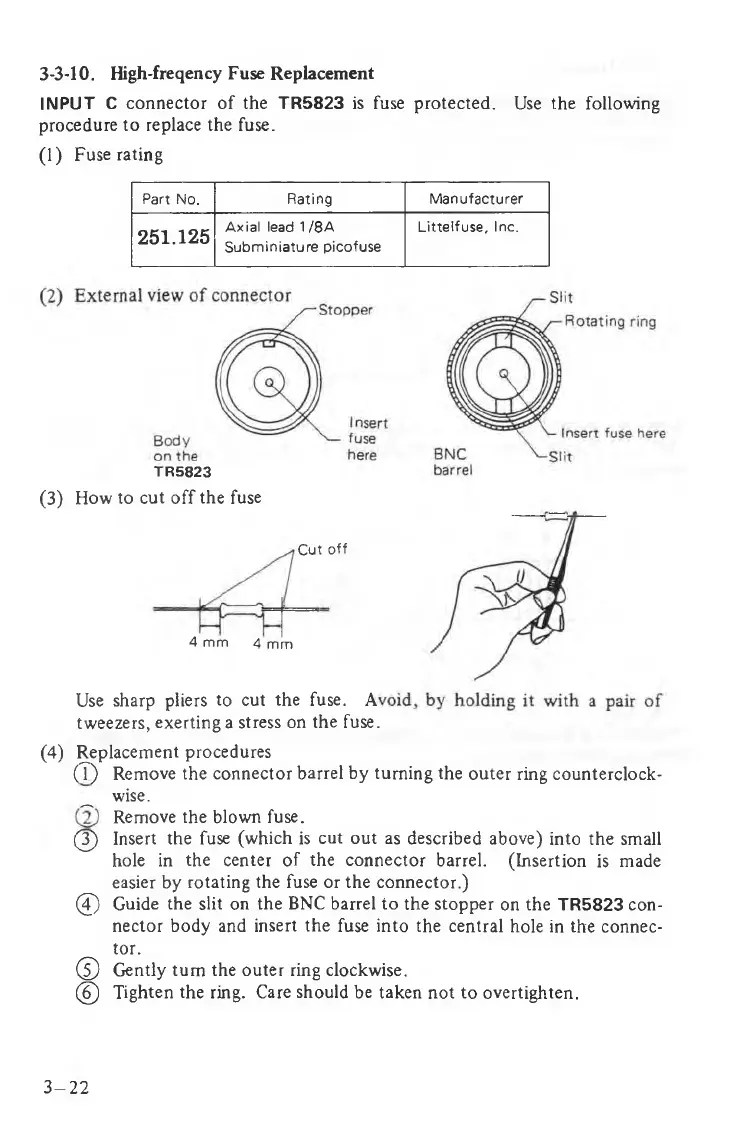

3-3-10. High-freqency Fuse Replacement
Part No.
Rating
Manufacturer
251.125
Axial lead 1 /8A
Subminiature picofuse
Littelfuse, Inc.
TR5823
(3) How to cut off the fuse
Cut off
4 mm 4 mm
Use sharp pliers to cut the fuse. A
tweezers, exerting a stress on the fuse.
(4) Replacement procedures
(7) Remove the connector barrel by turning the outer ring counterclock-
^ wise.
Remove the blown fuse.
Insert the fuse (which is cut out as described above) into the small
hole in the center of the connector barrel. (Insertion is made
easier by rotating the fuse or the connector.)
Guide the slit on the BNC barrel to the stopper on the TR5823 con
nector body and insert the fuse into the central hole in the connec
tor.
Gently turn the outer ring clockwise.
Tighten the ring. Care should be taken not to overtighten.
©
©
©
©
3 -2 2
