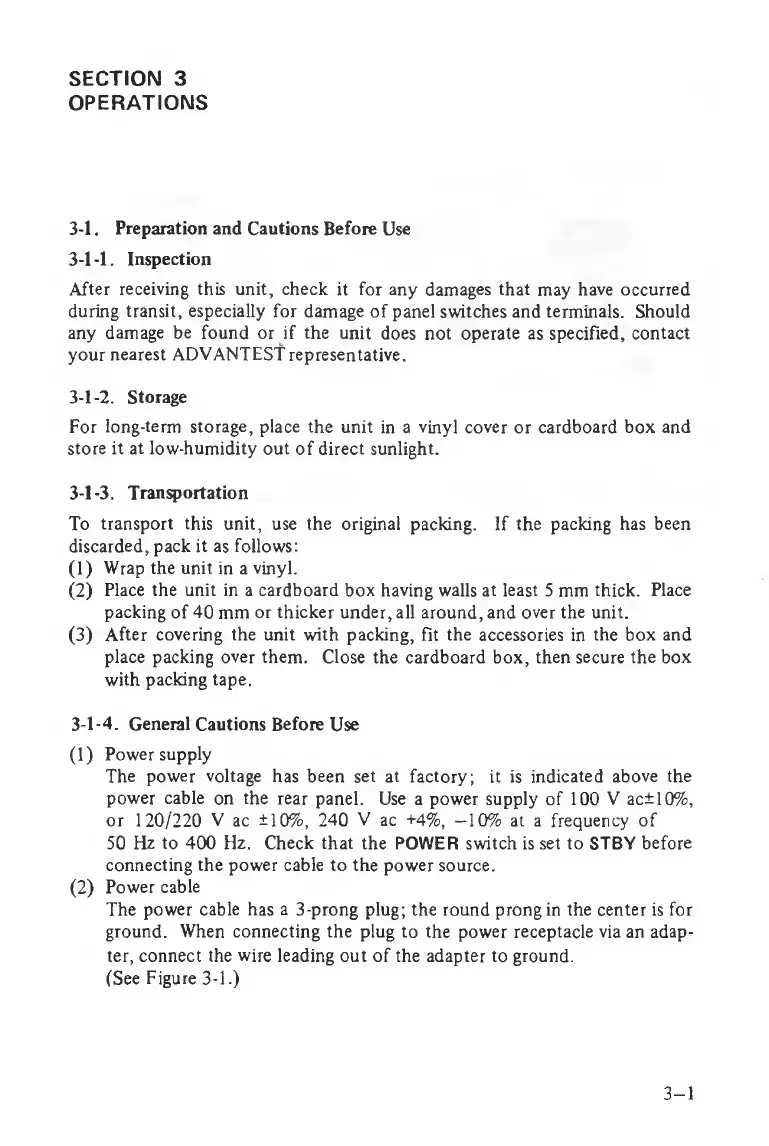

SECTION 3
OPERATIONS
3-1. Preparation and Cautions Before Use
3-1-1. Inspection
After receiving this unit, check it for any damages that may have occurred
during transit, especially for damage of panel switches and terminals. Should
any damage be found or if the unit does not operate as specified, contact
your nearest ADVANTEST representative.
3-1-2. Storage
For long-term storage, place the unit in a vinyl cover or cardboard box and
store it at low-humidity out of direct sunlight.
3-1-3. Transportation
To transport this unit, use the original packing. If the packing has been
discarded, pack it as follows:
(1) Wrap the unit in a vinyl.
(2) Place the unit in a cardboard box having walls at least 5 mm thick. Place
packing of 40 mm or thicker under, all around, and over the unit.
(3) After covering the unit with packing, fit the accessories in the box and
place packing over them. Close the cardboard box, then secure the box
with packing tape.
3-1-4. General Cautions Before Use
(1) Power supply
The power voltage has been set at factory; it is indicated above the
power cable on the rear panel. Use a power supply of 100 V ac±10%,
or 120/220 V ac ±10%, 240 V ac +4%, —10% at a frequency of
50 Hz to 400 Hz. Check that the POWER switch is set to STBY before
connecting the power cable to the power source.
(2) Power cable
The power cable has a 3-prong plug; the round prong in the center is for
ground. When connecting the plug to the power receptacle via an adap
ter, connect the wire leading out of the adapter to ground.
(See Figure 3-1.)
3-1
