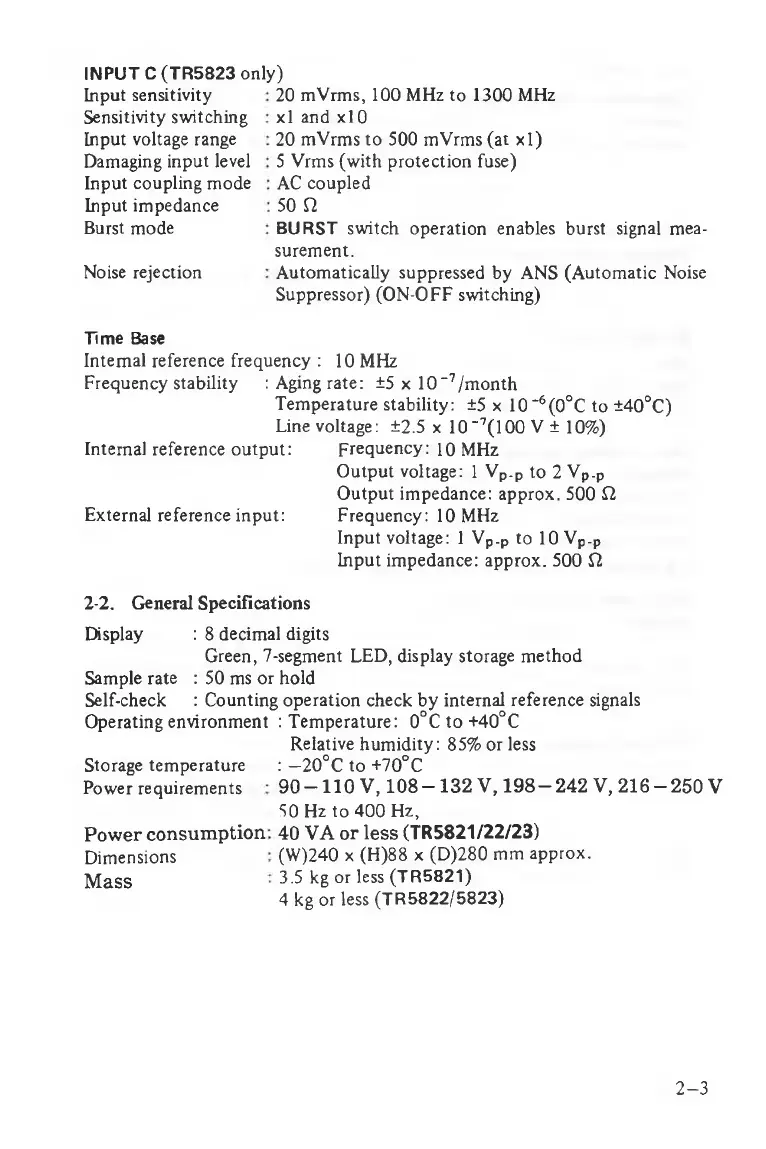

INPUT C (TR5823 only)
Input sensitivity
Sensitivity switching
Input voltage range
Damaging input level
Input coupling mode
Input impedance
Burst mode
Noise rejection
20 mVrms, 100 MHz to 1300 MHz
xl and xlO
20 mVrms to 500 mVrms (at xl)
5 Vrms (with protection fuse)
AC coupled
50 a
BURST switch operation enables burst signal mea
surement.
Automatically suppressed by ANS (Automatic Noise
Suppressor) (ON-OFF switching)
Time Base
Internal reference frequency : 10 MHz
Frequency stability : Aging rate: ±5 x 10~7/month
Temperature stability: ±5 x 10‘6(0°C to ±40°C)
Line voltage: ±2.5 x 10“7(100 V ± 10%)
Internal reference output: Frequency: 10 MHz
Output voltage: 1 Vp.p to 2 Vp.p
Output impedance: approx. 500 £2
External reference input: Frequency: 10 MHz
Input voltage: 1 Vp.p to 10 Vp.p
Input impedance: approx. 500 t l
2-2. General Specifications
Display : 8 decimal digits
Green, 7-segment LED, display storage method
Sample rate : 50 ms or hold
Self-check : Counting operation check by internal reference signals
Operating environment : Temperature: 0°C to +40°C
Relative humidity: 85% or less
: —20°C to +70°C
90 -1 1 0 V, 108 -1 3 2 V, 198 - 242 V, 216 - 250 V
50 Hz to 400 Hz,
40 VA or less (TR5821/22/23)
(W)240 x (H)88 x (D)280 mm approx.
3.5 kg or less (TR5821)
4 kg or less (TR5822/5823)
Storage temperature
Power requirements
Power consumption
Dimensions
Mass
