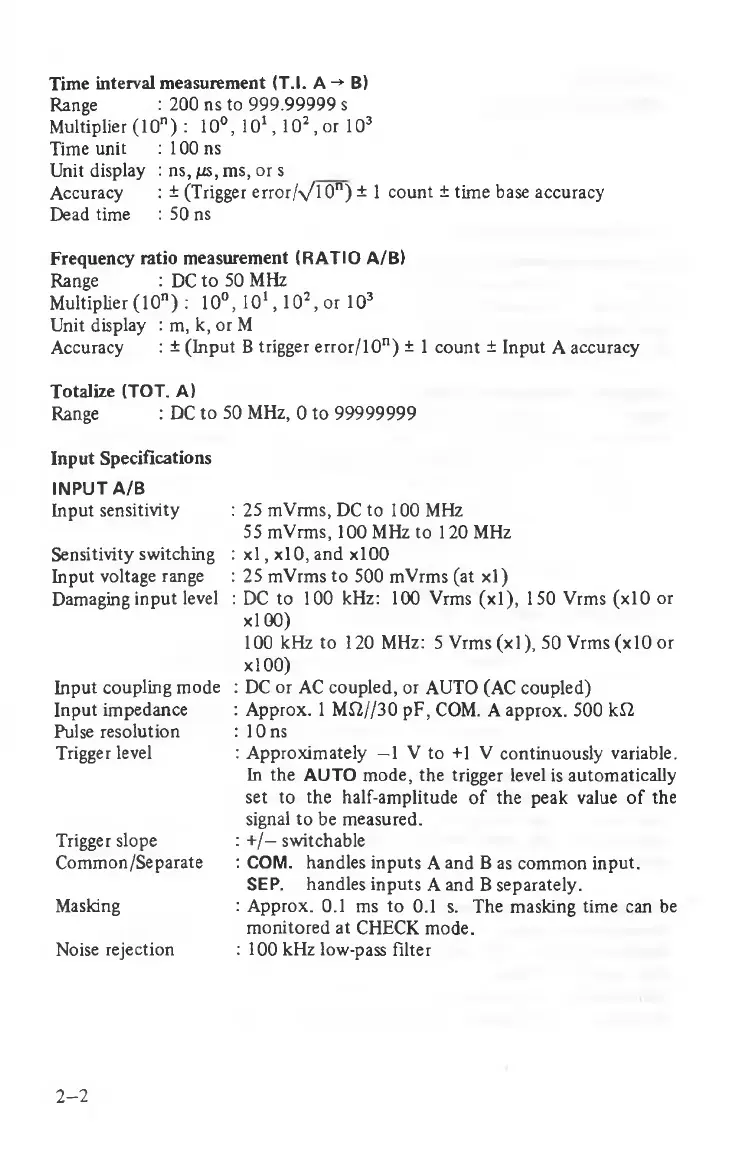

Time interval measurement (T.l. A - + B)
Range : 200 ns to 999.99999 s
Multiplier (10n) : 10°, 101, 102, or 103
Time unit : 100 ns
Unit display : ns, ij s, ms, or s
Accuracy : ± (Trigger errorly j\ 0n) ± 1 count ± time base accuracy
Dead time : 50 ns
Frequency ratio measurement (RATIO A/B)
Range : DC to 50 MHz
Multiplier (10n) : 10°, 1 0 \ 102,or 103
Unit display : m, k, or M
Accuracy : ± (Input B trigger error/10n) ± 1 count ± Input A accuracy
Totalize (TOT. A)
Range : DC to 50 MHz, 0 to 99999999
Input Specifications
INPUT A/B
Input sensitivity
Sensitivity switching
Input voltage range
Damaging input level
Input coupling mode
Input impedance
Pulse resolution
Trigger level
Trigger slope
Common/Separate
Masking
Noise rejection
: 25 mVrms, DC to 100 MHz
55 mVrms, 100 MHz to 120 MHz
: x l, xlO, and xlOO
: 25 mVrms to 500 mVrms (at xl)
: DC to 100 kHz: 100 Vrms (xl), 150 Vrms (xlO or
xl GO)
100 kHz to 120 MHz: 5 Vrms (xl), 50 Vrms (xlO or
xlOO)
: DC or AC coupled, or AUTO (AC coupled)
: Approx. 1 M£2//30 pF, COM. A approx. 500 k£2
: 10 ns
: Approximately 1 V to +1 V continuously variable.
In the AUTO mode, the trigger level is automatically
set to the half-amplitude of the peak value of the
signal to be measured.
: +/ switchable
: COM. handles inputs A and B as common input.
SEP. handles inputs A and B separately.
: Approx. 0.1 ms to 0.1 s. The masking time can be
monitored at CHECK mode.
: 100 kHz low-pass filter
2-2
