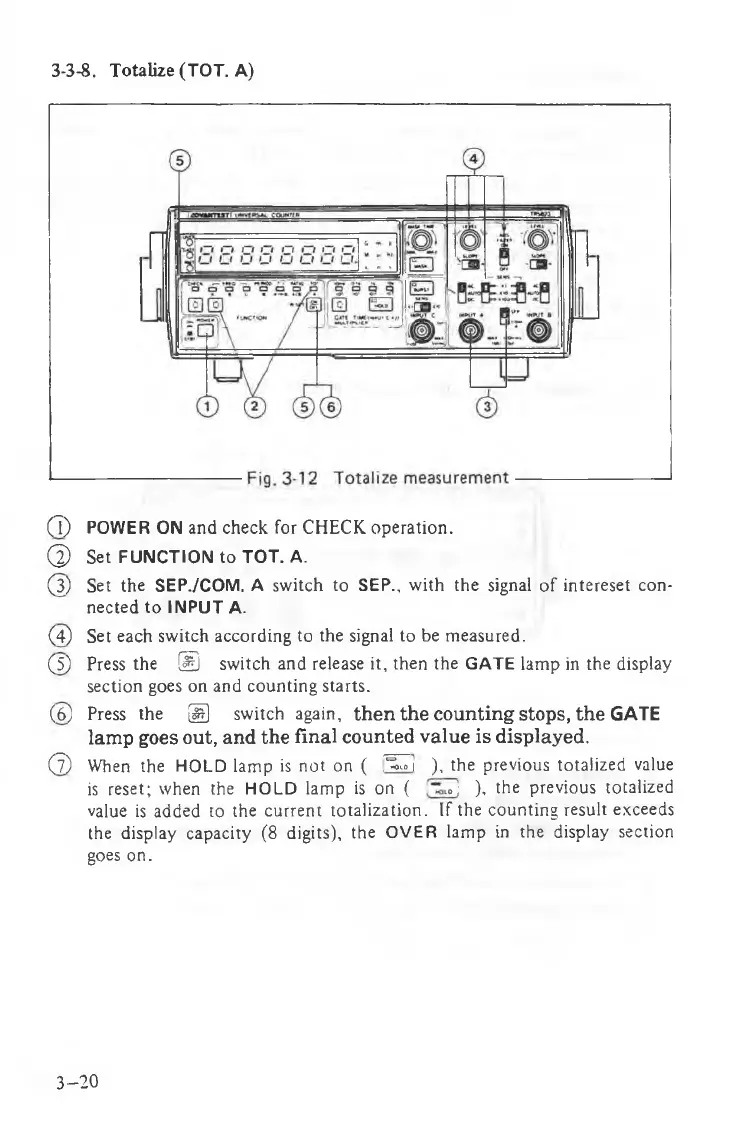

3-3-8. Totalize (TOT. A)
(T) POWER ON and check for CHECK operation.
Q) Set FUNCTION to TOT. A.
(3) Set the SEP./COM. A switch to SEP., with the signal of intereset con
nected to INPUT A.
(4) Set each switch according to the signal to be measured.
(5) Press the © switch and release it, then the GATE lamp in the display
section goes on and counting starts.
(6) Press the ® switch again, then the counting stops, the GATE
lamp goes out, and the final counted value is displayed.
(7) When the HOLD lamp is not on ( .^ 1 ), the previous totalized value
is reset; when the HOLD lamp is on ( L, ; ), the previous totalized
value is added to the current totalization. If the counting result exceeds
the display capacity (8 digits), the OVER lamp in the display section
goes on.
3-20
