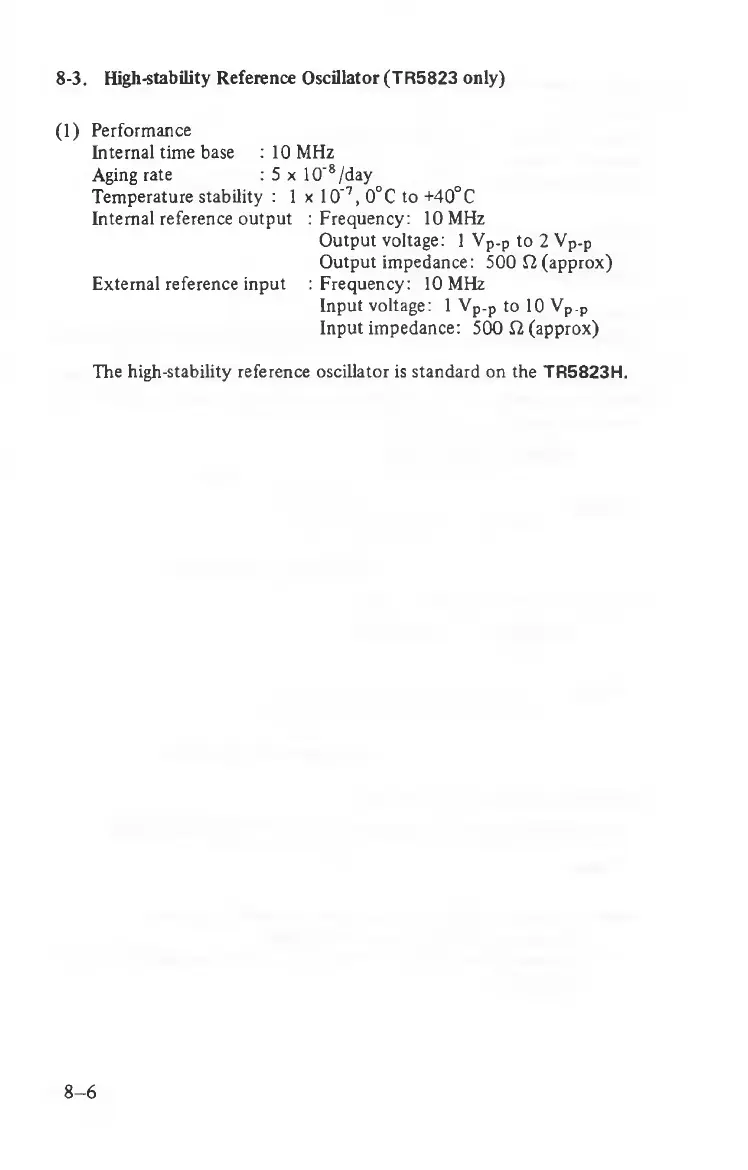

8-3. High-stability Reference Oscillator (TR5823 only)
(1 ) P e rfo rm a n ce
In te rn a l tim e base : 10 M H z
A ging rate : 5 x 10 ‘8 /d ay
T em p e ra tu re sta b ility : 1 x 1 0 '7, 0°C to + 4 0°C
In te rn a l re feren ce o u tp u t : F re q u e n c y : 10 M Hz
O u tp u t v oltag e: 1 V p -p to 2 V p.p
O u tp u t im p ed a n c e: 5 0 0 12 (a p p ro x )
E x te rn a l re fe re n ce in p u t : F re q u e n c y : 10 M Hz
In p u t v o lta g e: 1 V p -p to 10 V p .p
In p u t im p e d an c e: 5 0 0 12 (a p p ro x )
T he h ig h -sta b ility re fe re nc e o scilla to r is sta n d a rd on th e T R 58 2 3 H .
