(T) POWER ON and check for CHECK operation.
© Set FUNCTION to FREQ. B.
(3) Connect the signal to be measured to INPUT B.
(?) Set the SEP./COM. A switch to SEP.
(5) Set each switch according to the signal to be measured.
(6) Select a GATE TIME according to the required precision.

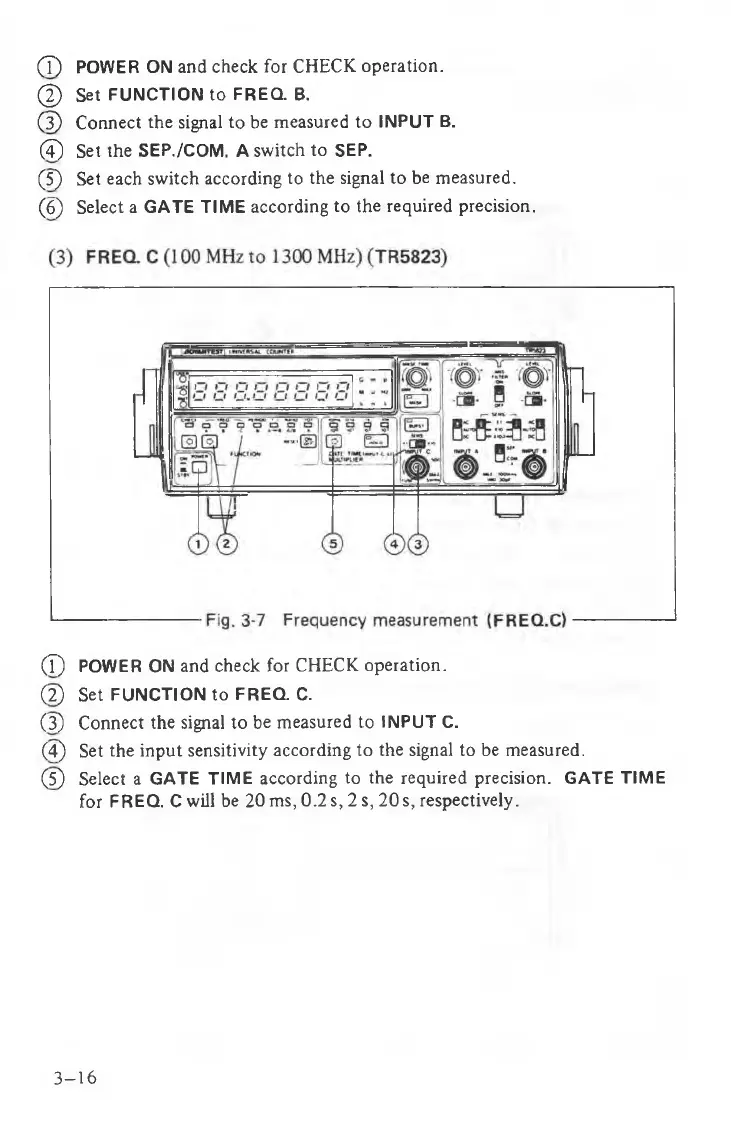

(T) POWER ON and check for CHECK operation.
(2) Set FUNCTION to FREQ. C.
(3) Connect the signal to be measured to INPUT C.
(4) Set the input sensitivity according to the signal to be measured.
(5) Select a GATE TIME according to the required precision. GATE TIME
for FREQ. C will be 20 ms, 0.2 s, 2 s, 20 s, respectively.
3-16
