(4) Burst measurement (FREQ. C) (TR5823)
-----------------------------------

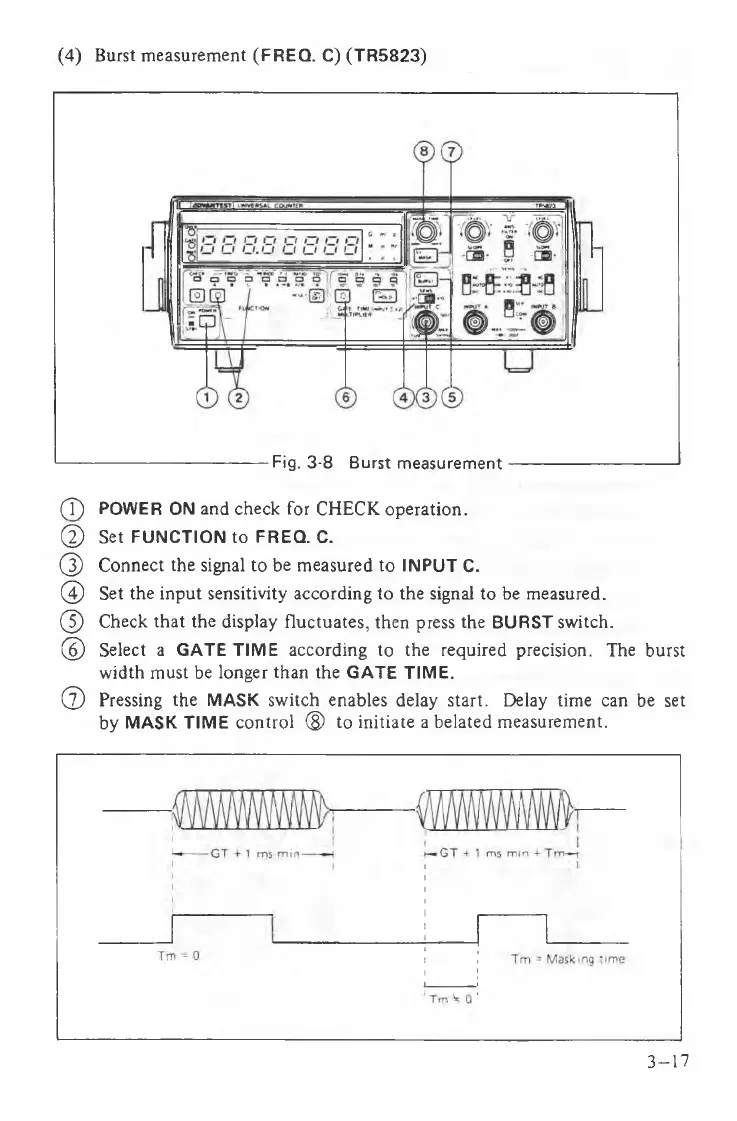

Fig. 3-8 Burst measurement
-----------------------------
(T) POWER ON and check for CHECK operation.
© Set FUNCTION to FREQ. C.
© Connect the signal to be measured to INPUT C.
© Set the input sensitivity according to the signal to be measured.
© Check that the display fluctuates, then press the BURST switch.
© Select a GATE TIME according to the required precision. The burst
width must be longer than the GATE TIME.
© Pressing the MASK switch enables delay start. Delay time can be set
by MASK TIME control ® to initiate a belated measurement.
