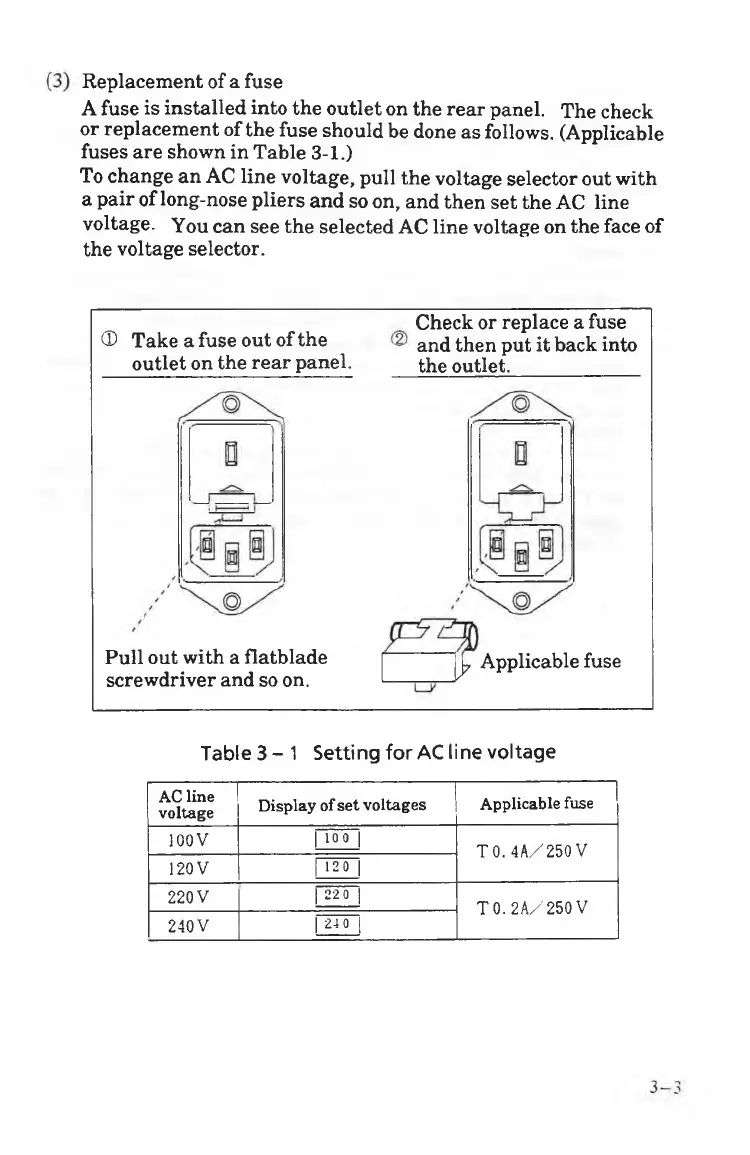

A fuse is installed into the outlet on the rear panel. The check
or replacement of the fuse should be done as follows. (Applicable
fuses are shown in Table 3-1.)
To change an AC line voltage, pull the voltage selector out with
a pair of long-nose pliers and so on, and then set the AC line
voltage. You can see the selected AC line voltage on the face of
the voltage selector.
R eplacem ent of a fuse
CD Take a fuse out of the
outlet on the rear panel.
Pull out with a flatblade
screwdriver and so on.
Check or replace a fuse
and then put it back into
the outlet.
y Applicable fuse
T a b le 3 -1 Setting for AC line voltage
AC line
voltage
Display of set voltages
Applicable fuse
100V
1 100 1
TO. 4A/250V
120V
1 120 1
220 V
|220 |
T0.2A/250V
240V
1 240 |
