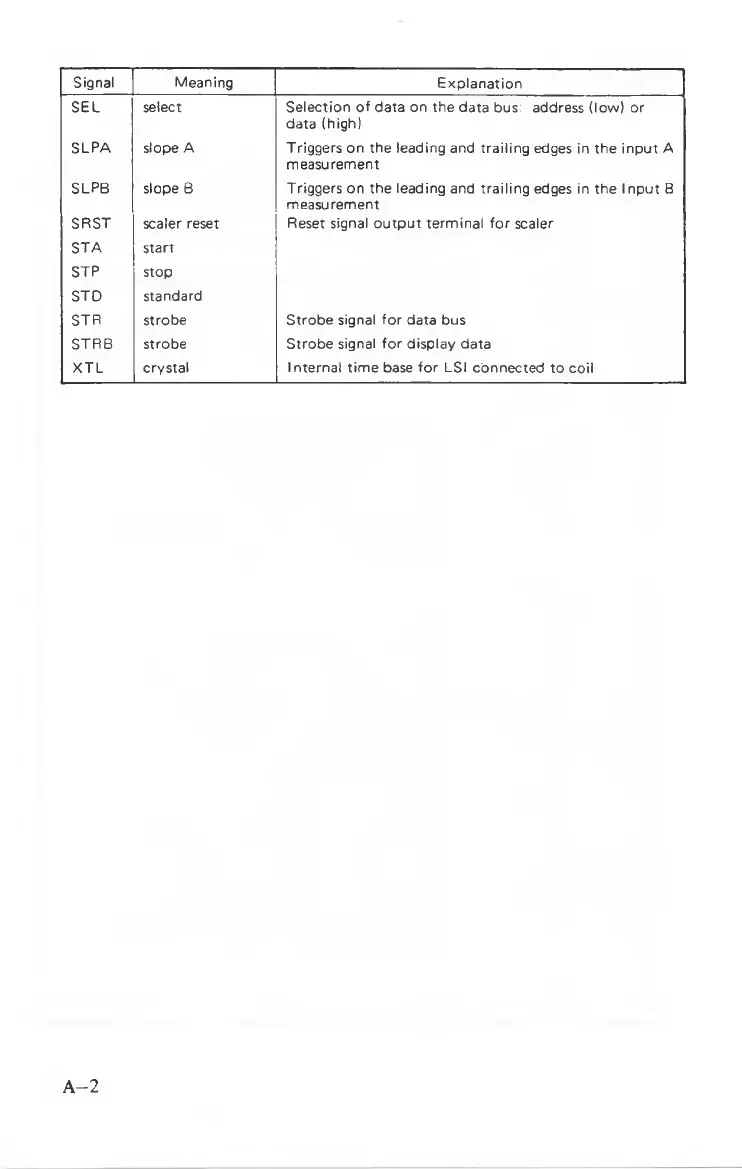

Signal
Meaning
Explanation
SEL select Selection of data on the data bus: address (low ) or
data (high)
SLPA
slope A Triggers on the leading and trailing edges in the inpu t A
measurement
SLPB
slope B
Triggers on the leading and trailing edges in the Input B
measurement
SRST
scaler reset Reset signal o u tpu t terminal fo r scaler
STA start
STP
stop
STD
standard
STR
strobe
Strobe signal for data bus
STRB
strobe Strobe signal fo r display data
X T L crystal Internal tim e base fo r LSI connected to coil
A-2
