Page 12 AD Series Dehumidifying Dryers

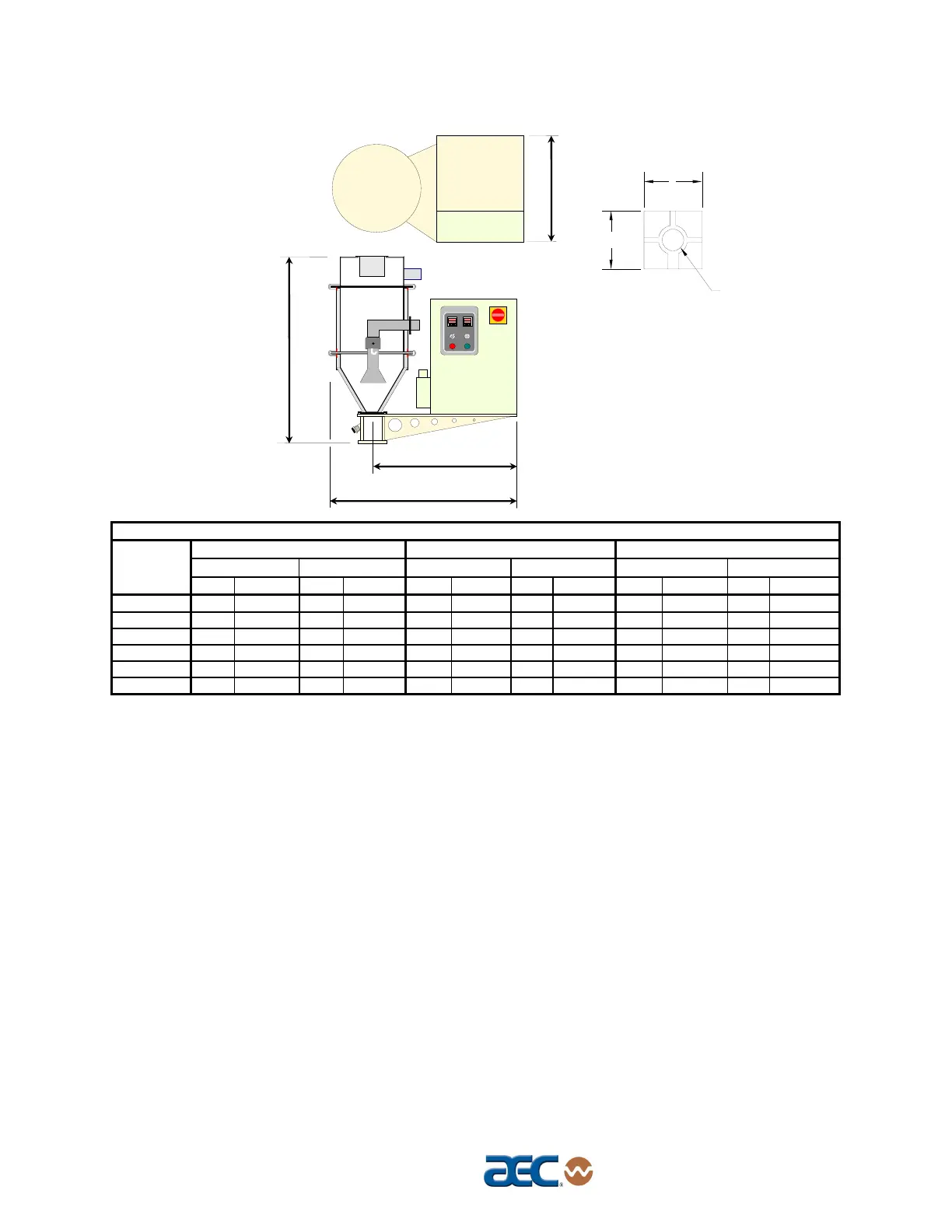

Figure 2
AD Series Machine-Mount Dimensions
AD15, AD30, AD60 machine-mount dimensions in inches/cm
AD15 AD30 AD60
0.7 ft.
3
/20 liters 1.5 ft.
3
/40 liters 1.5 ft.
3
/40 liters 3.0 ft.
3
/80 liters 4.0 ft.
3
/120 liters 6.0 ft.
3
/160 liters
Dimension in. cm in. cm in. cm in. cm in. cm in. cm
A 41 104 43 109 43 109 46 117 56.75 144 56.75 144
B 36 91 37 94 37 94 44 112 50 127 62 158
C307630763076307634863486
D 35 89 35 89 35 89 35 89 45.75 116 45.75 116
E 4 10.2 4 10.2 4 10.2 7 17.8 7 17.8 7 17.8
F 1.5 3.8 1.5 3.8 1.5 3.8 2 5.1 2 5.1 2 5.1
Mounting flange
Hopper mounting flanges on 0.75 and
can drill to match existing machine throat.
Diameter hole:
Notes:
and 1.5 cu. ft. (20 & 40 liter) hoppers
are supplied blank so the customer
3.0 cu. ft. (80 liter) hoppers and larger
are not supplied with a cast flange
as shown
.
E
E
F
C
B
A
ON
OFF
PROCESS
TEMPERATURE
DEW POINT
CONTROL POWER
ON OFF
ALARM ALARM Silencer
ALARM HORN
D
