AD Series Dehumidifying Dryers Page 13

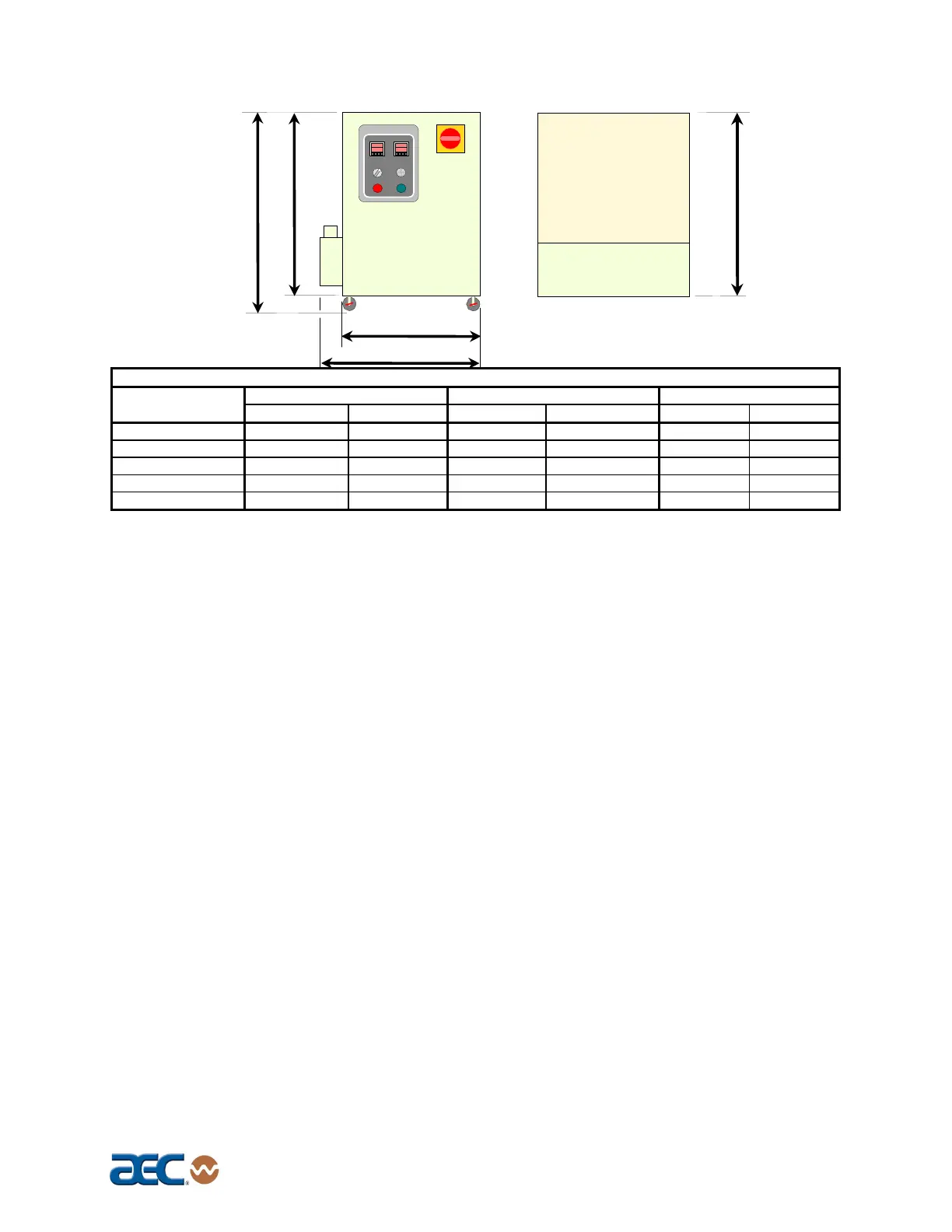

Figure 3
AD Series Floor-Mount Dimensions
AD15, AD30, AD60 floor-mount dimensions in inches/cm
AD15 AD30 AD60
Dimension in. cm in. cm in. cm
A205120512461
B 32.5 83 32.5 83 32.5 83
C307630763076
D307630763486
E 23.75 60 23.75 60 28 71
1-7 What is Desiccant?
Desiccant is a material that attracts and holds (absorbs) water from
the air. The desiccant AEC dryers use is a synthetic crystalline
metal aluminosilicate blended with a clay binder and formed into
beads.
Absorbed water is driven from saturated desiccant by heating it to
a high temperature (reducing desiccant capacity to hold water) and
forcing air through it. This moisture removal process is called
regeneration.
1-8 The Process/Regeneration Cycle
AEC AD dryers have two desiccant beds. While one bed is on-line
in the process air loop, the other is off-line, being regenerated.
ON
OFF
PROCESS
TEMPERATURE
DEW POINT
CONTROL POWER
ON OFF
ALARM ALARM Silencer
ALARM HORN
B
C
A
E
D
