AEC AD Series - Suggested Lift Rigging for AD Dryers (Cart Mount)

Page 26 AD Series Dehumidifying Dryers
CAUTION!
• If you are mounting an AD machine-mount dryer with a magnet
or transition adaptor on the machine throat, you must provide
additional support to hold the dryer securely on the machine.
• Be aware that off-center static and dynamic hopper loading can
occur with machine vibration. Again, provide additional support
to hold the dryer securely on the machine.
• For AD60 dryer units, you must provide additional support to
stabilize these units and to protect personnel when installing
on machine throats.
• Use caution and observe safety rules when lifting and placing
your dryer!

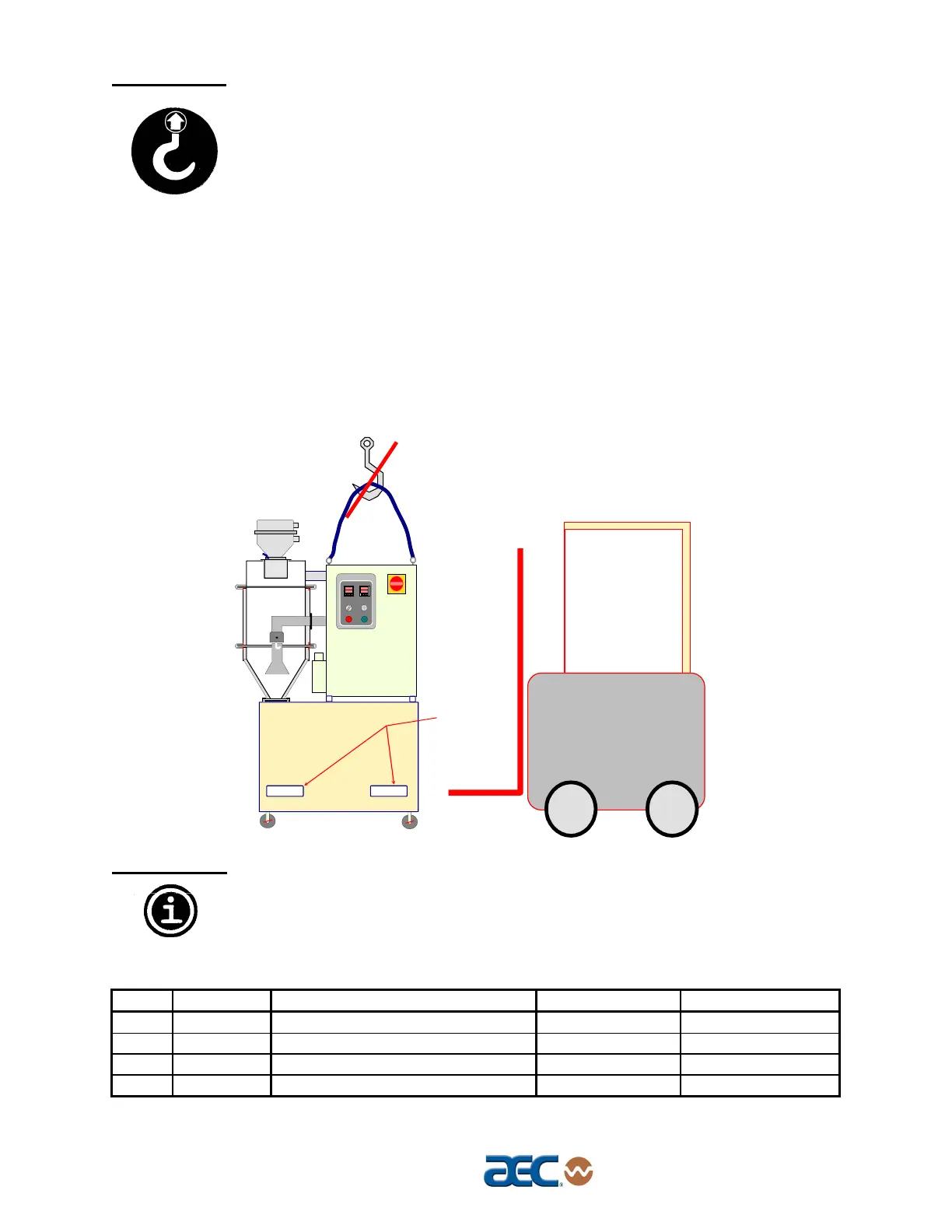

Figure 4A
Suggested Lift Rigging for AD Dryers (Cart Mount)
Important!
Do not use a hoist to move or rig your AD Dryer when it is mounted
on a cart! Moving the Dryer with a hoist will cause it to become
unstable and may cause damage to the Dryer and/or injury to
personnel!
Item Quantity Description Vendor Vendor part no.
1 1 Adjustable alloy chain sling McMaster-Carr 33665T32
2 2 Existing hopper lifting bracket — —
3 1 Drop forged steel eye nut McMaster-Carr 3019T15
4 1 Chain connector McMaster-Carr 3712T23
ON
OFF
PROCESS
TEMPERATURE
DEW POINT
CONTROL POWER
ON OFF
ALARM
ALARM Silencer
ALARM HORN
DO NOT
USE
USE
FORK
LIFT
TRUCK
