12 23.05  6755517_09

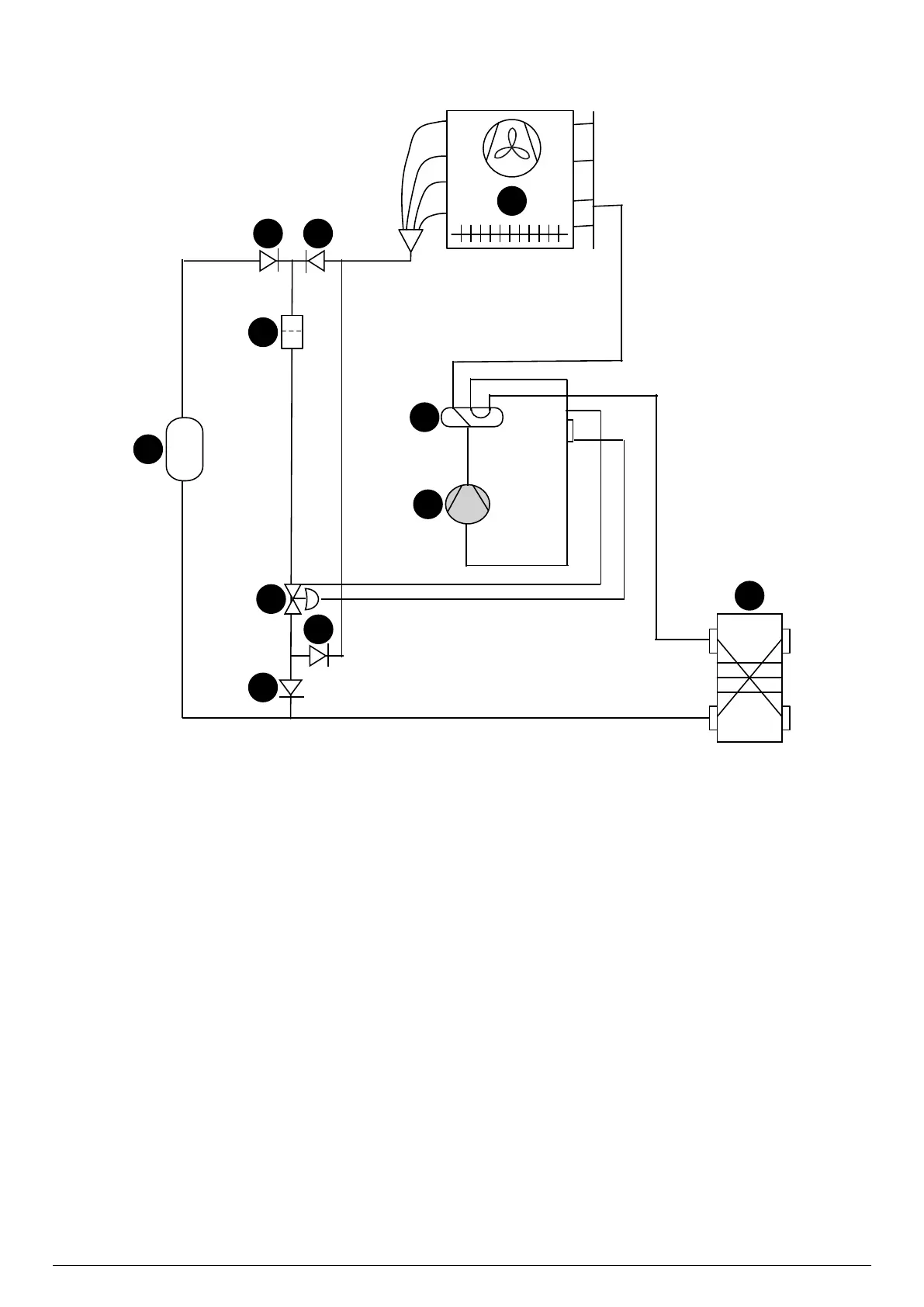

5 MAIN COOLING REFRIGERANT LAYOUTS
1 Finned coil
2 Reversing valve
3 Compressor
4 Plate heat exchanger
5 One-way valve
6 Mechanic thermostatic valve
7 Liquid accumulator
8 Filter drier
1
2
3
4
5
5
6
7
8
5 5
