9 GENERAL TECHNICAL DATA
Size 100 150
Compressor
Type °,A,P type Scroll Scroll
Compressor regulation °,A,P Type On-O On-O
Number °,A,P no. 2 2
Circuits °,A,P no. 1 1
Refrigerant °,A,P type R410A R410A
Refrigerant charge (1) °,A,P lbs 28.0 35.3
Total oil charge °,A,P lbs 3.5 3.5
System side heat exchanger
Type °,A,P type Brazed plate Brazed plate
Number °,A,P no. 1 1
Hydraulic connections
Connections (in/out) °,A,P Type Gas - F Gas - F
Sizes (in/out) °,A,P Ø 1”1/4 1”1/4
Fan
Type °,A,P type Axial Axial
Fan motor °,A,P type Asynchronous Asynchronous
Number °,A,P no. 2 2
Air ow rate °,A,P cfm 8,240.1 7,945.8
Sound data calculated in cooling mode (2)
Sound power level °,A,P dB(A) 76.0 77.0
Sound pressure level (10 m / 33 ft) °,A,P dB(A) 44.0 45.0
Sound pressure level (1 m / 3.3 ft) °,A,P dB(A) 59.0 60.0
(1) The load indicated in the table is an estimated and preliminary value. The nal value of the refrigerant load is indicated on the unit’s technical label. For further information contact the oce.
(2) Sound power calculated on the basis of measurements made in accordance with UNI EN ISO 9614-2. Sound pressure (cold functioning) measured in free eld, 10 m / 33 ft away from the unit external surface (in compliance with UNI
EN ISO 3744).

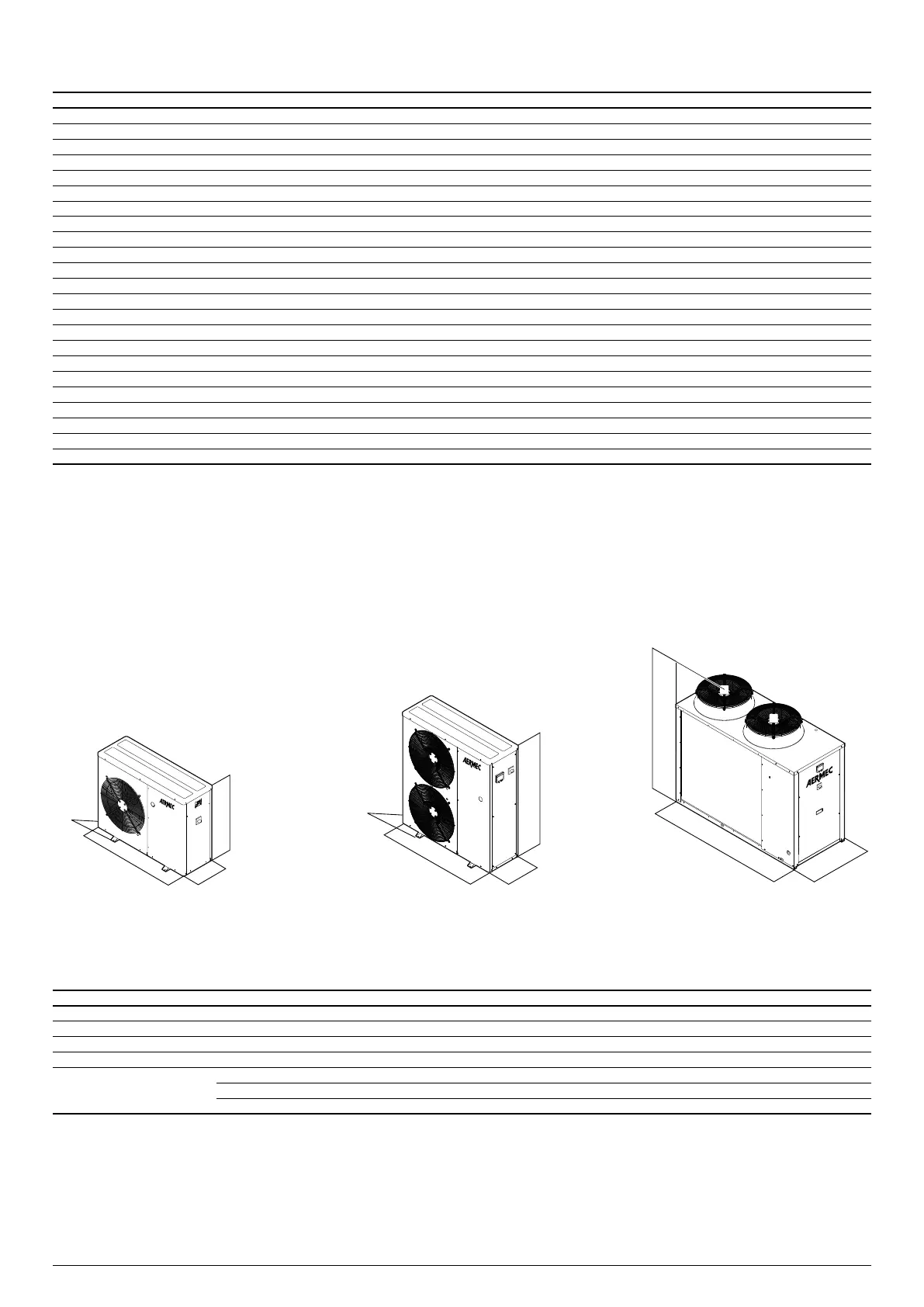

DIMENSIONS AND WEIGHTS
A
B
A
C
D
A
B
B
Size 100 150
Dimensions and weights
A °,A,P in 57.1 57.1
B °,A,P in 29.5 29.5
C °,A,P in 68.9 68.9
Empty weight
° lbs 650 710
A lbs 800 866
P lbs 690 756
