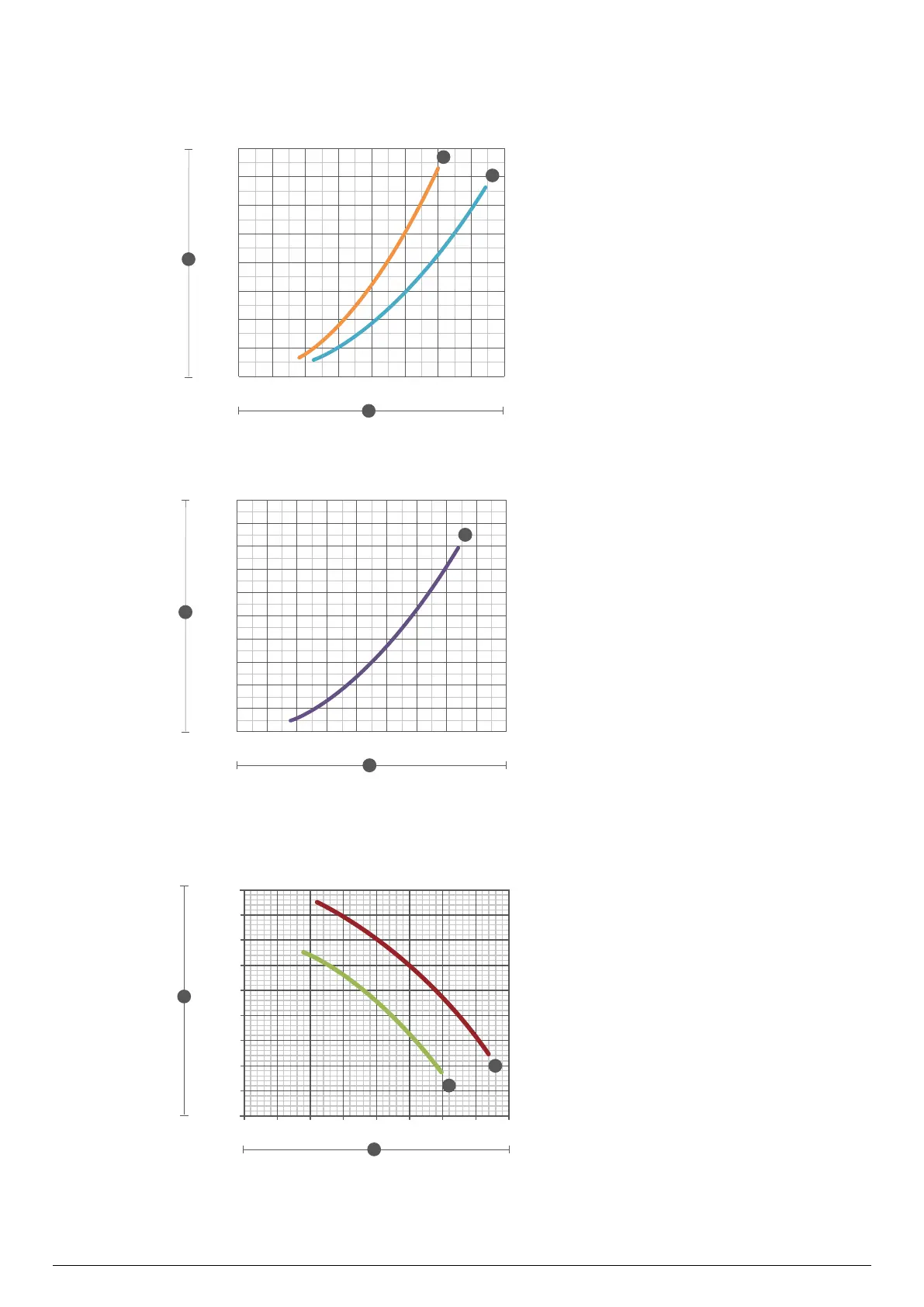

11 PRESSURE DROPS
COOLING ONLY
Key:
A Pressure drops (psi)
B Water ow rate (gpm)
1 ANL 100
2 ANL 150
psi
0
1.45
2.90
4.35
5.80
7.25
8.70
10.15
11.60
gpm
0 4 9 13 18 22 26 31 35
B
A
1
2
WATER FILTER - PRESSURE DROP
Key:
A Pressure drops (psi)
B Water ow rate (gpm)
1 Size 1" 1/2
0
0.58
0.29
0.87
1.16
1.45
1.74
2.03
2.32
2.61
2.90
psi
0 4 9 13 18 22 26 31 35 40
gpm
B
A
1
11.1 USEFUL HEAD
Key:
A Pressure drops (psi)
B Water ow rate (gpm)
1 ANL 100
2 ANL 150
0
2.90
5.80
8.70
11.60
14.50
17.40
20.30
23.20
26.10
psi
0 4 9 13 18 22 26 31 35
gpm
B
A
1
2
