Installation for use with a Ventilator
T-Pieces - Connection to a Breathing Circuit
1. For 22mm adult breathing circuits connect the nebuliser with adult
T-piece into the inspiratory limb of the breathing circuit before the
patient Y (Figure 5).

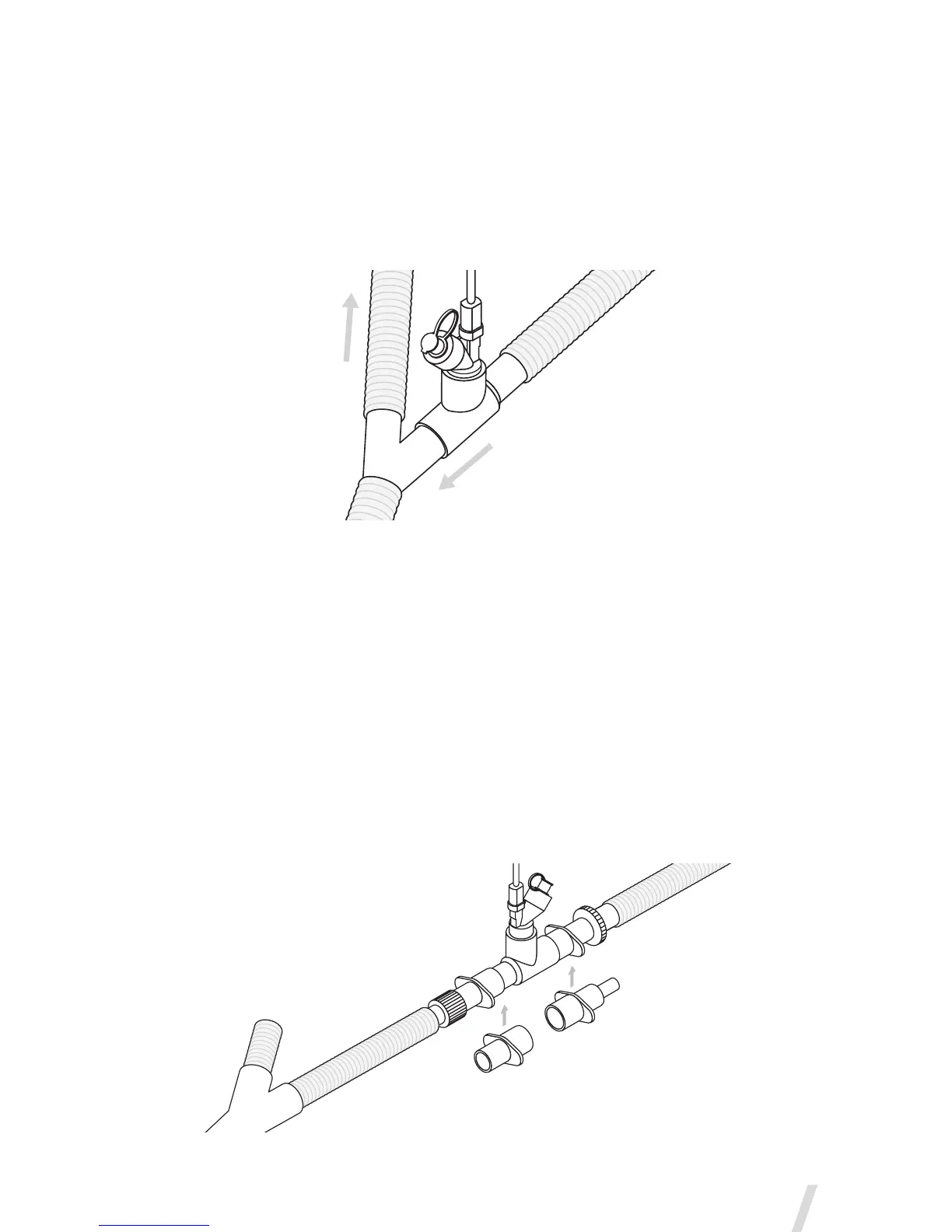

Figure 5. Connecting the Aerogen Solo to a breathing circuit
Note: Figure 5 shows adult configuration only
For 15mm paediatric breathing circuits connect the nebuliser with
the paediatric T-piece into the inspiratory limb of the breathing circuit
before the patient Y.
The Aerogen Solo can connect to 10mm neonate breathing circuits
with the 15mm paediatric T-piece and the neonate adapters. This can
be positioned approximately 30cm (12 in.) back from the patient Y
(Figure 6).
Figure 6. Connecting to a neonate breathing circuit
