Assembly & Installation
Aerogen Solo System Set-Up
Perform a functional test of the Aerogen Solo before use as described in
the Functional Test section of this manual (See page 21).

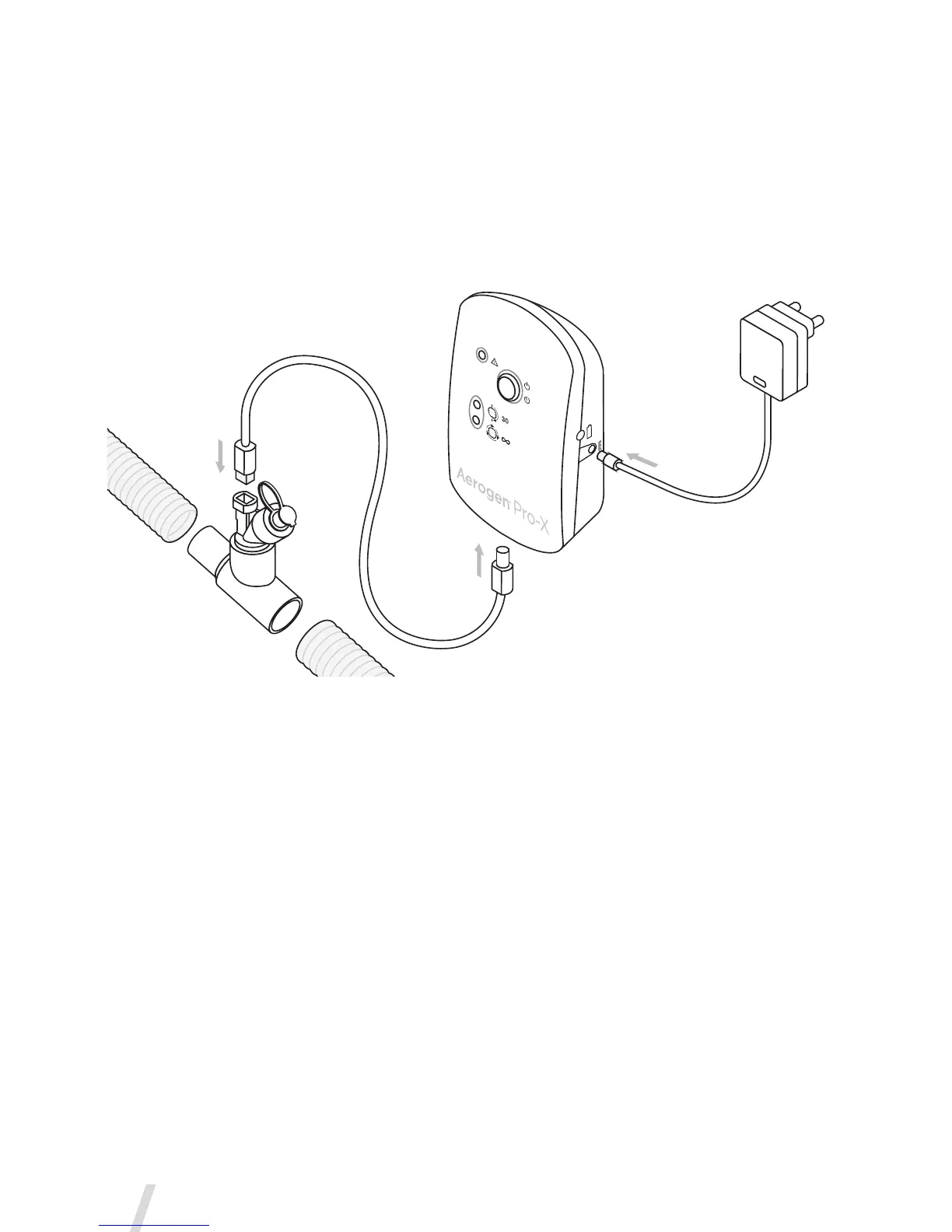

Figure 2. Assembly of Aerogen Solo System
1. Connect the Aerogen Solo to the T-piece by pushing the nebuliser
firmly onto the T-piece.
2. Insert the Aerogen Solo and the T-piece into the breathing circuit.
Note: For use with other accessories, refer to Figure 9, Figure 10 and
Figure 11.
3. Connect the Aerogen Pro-X Controller to the Aerogen Solo using the
nebuliser cable.
4. To operate on AC power (the primary mode of operation), connect the
Aerogen Pro-X AC/DC adapter to the Aerogen Pro-X Controller.
5. Plug the adapter into an AC power source.
